Type and Tools

The relationship of letters and technology: an incomplete overview

The Pen

Persian Cuneiform — Cuneiform c.3000 BCE—300CESource

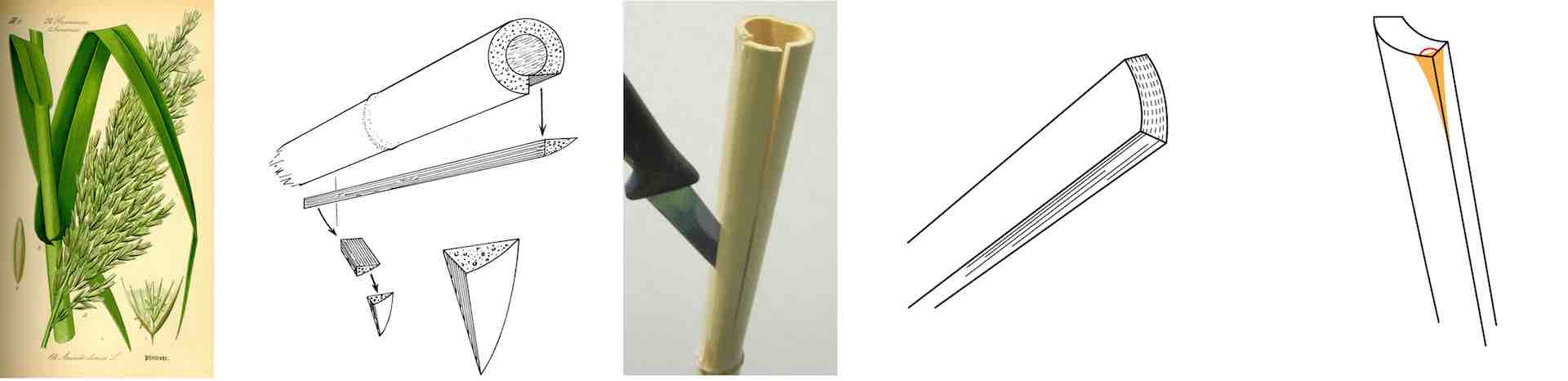

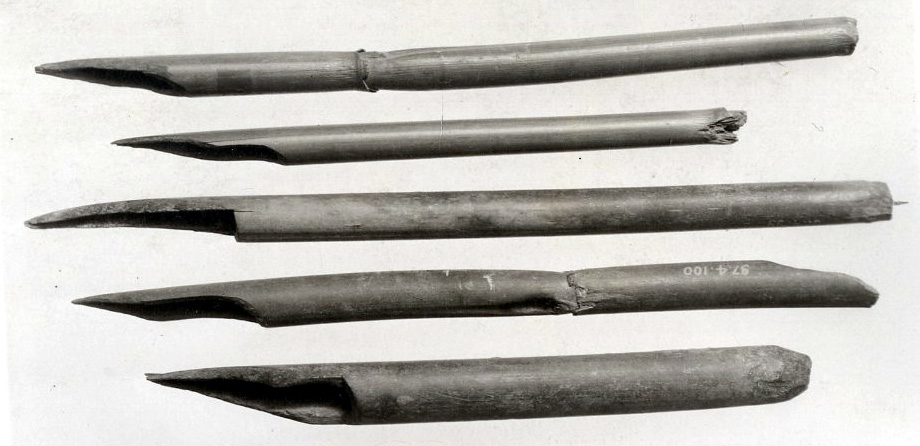

Reed Stylus — Blunt end of a reed stylus into wet clay tablets Source

c.1600 BCE: Hieratic script on Papyrus Source

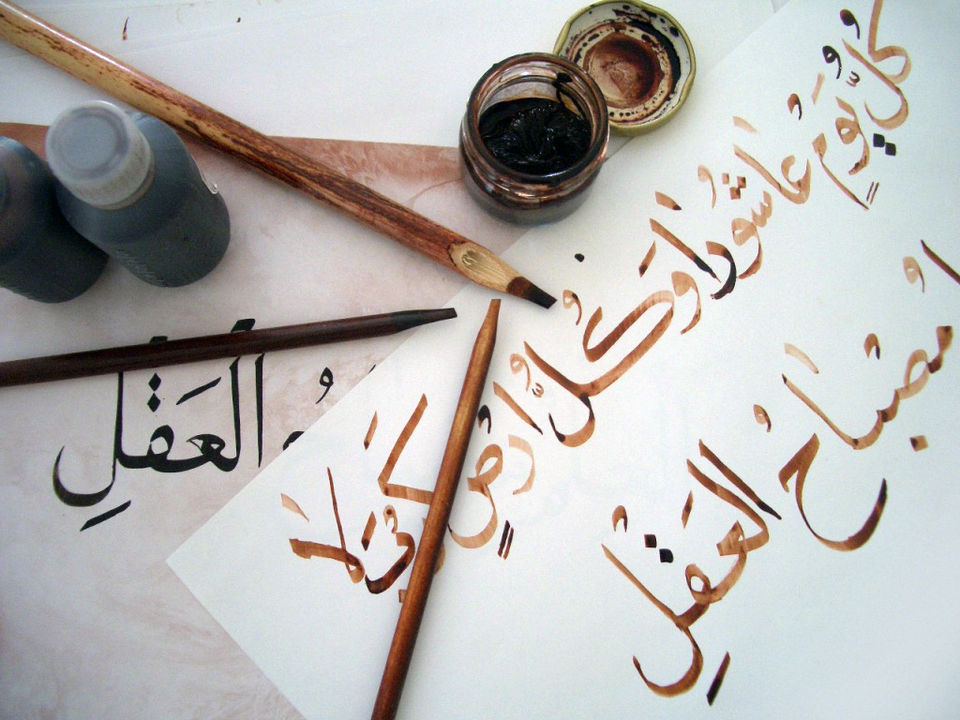

Qalams — Qalam: pen made of cut, dried reed for ArabicSource

c.1200 BCE: Ancient Chinese Script on Oracle Bones Source

Seal script example — c. 221 BCE: Seal script style Source

c. 185 Han Dynasty Clerical Script Source

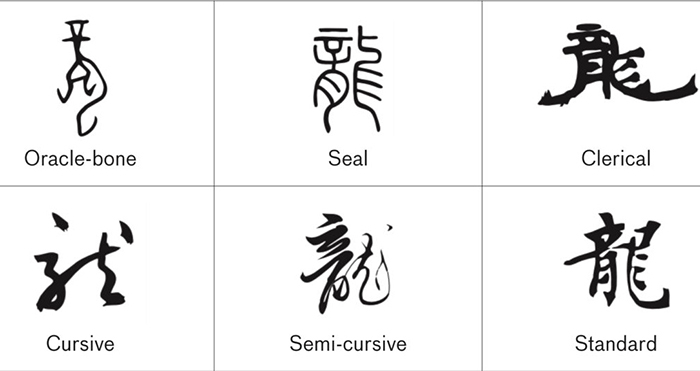

Types of calligraphic scripts — Types of Chinese calligraphic scripts Source

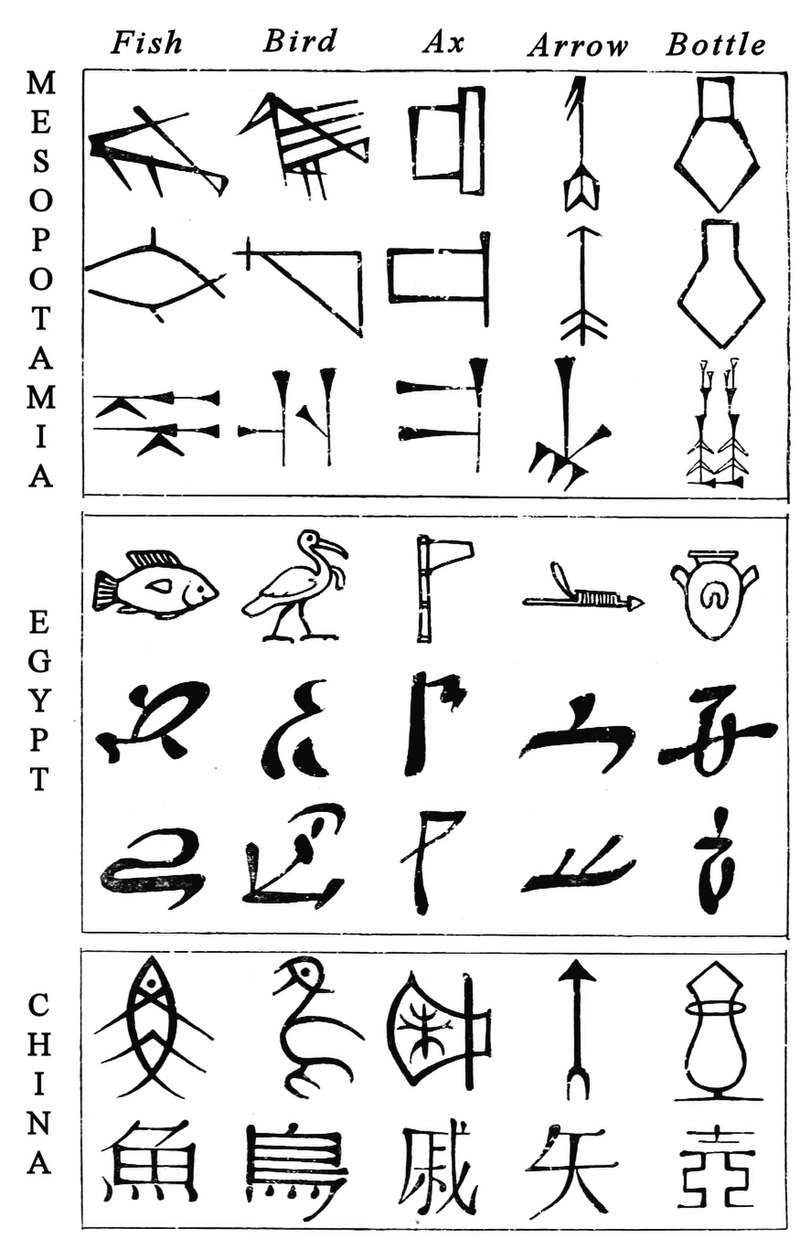

Comparison of ancient writing systems Source

Burmese manuscripts — Three different styles of the Burmese script Source

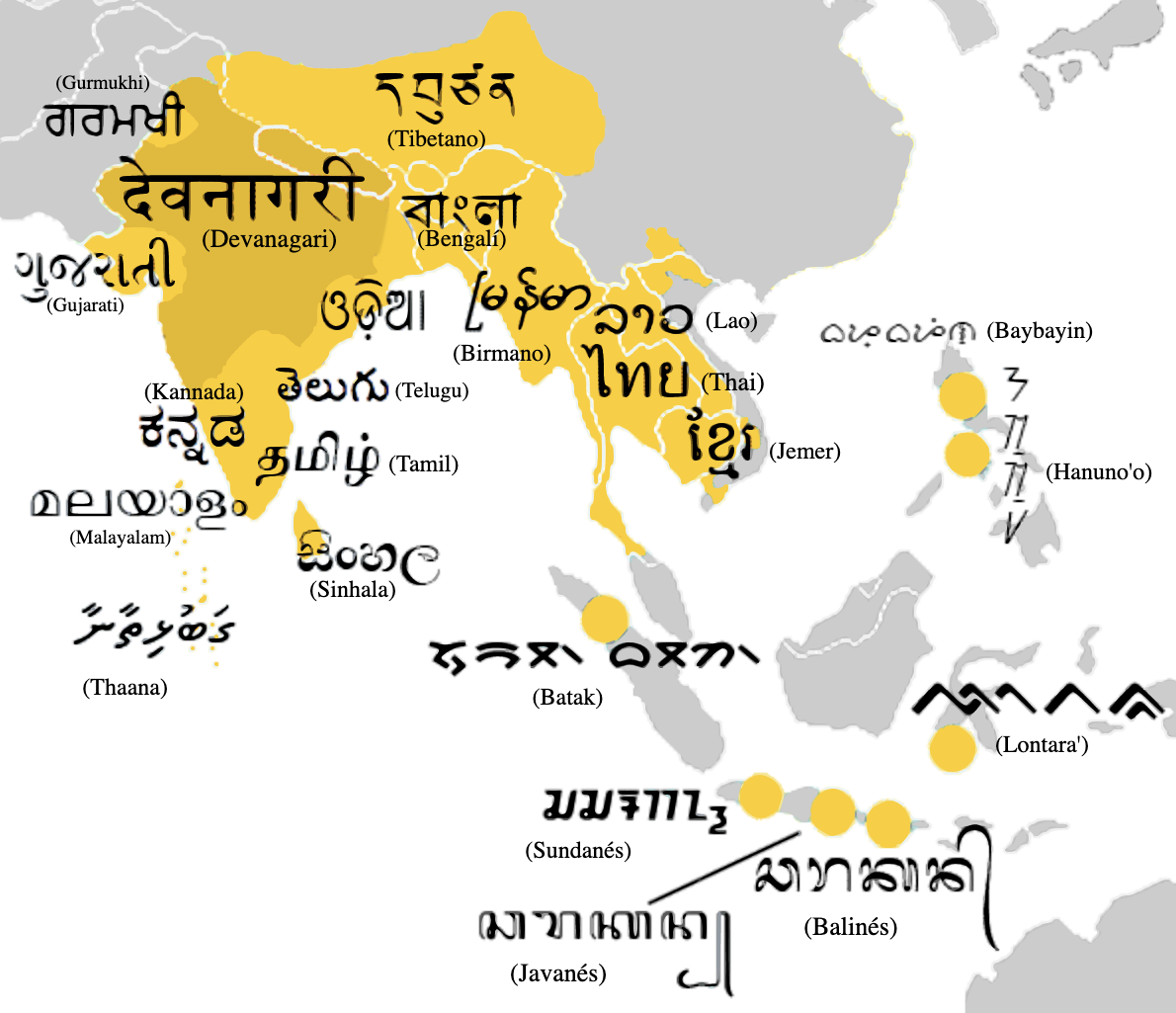

Brahmi Letter Shapes — Brahmi letter shapesSource

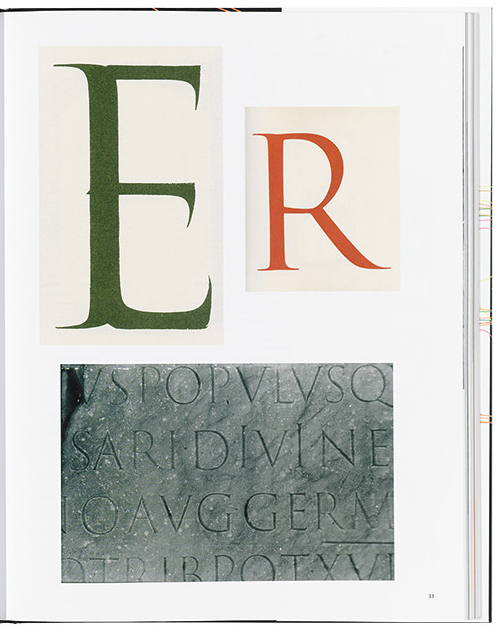

Roman forms — Roman brush letteringSource

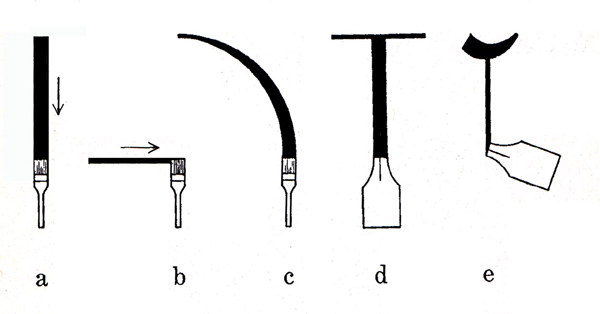

Brush and Cchisel — Broad flat brushes defined the letters before they were carved, giving rise to “serifs” Source

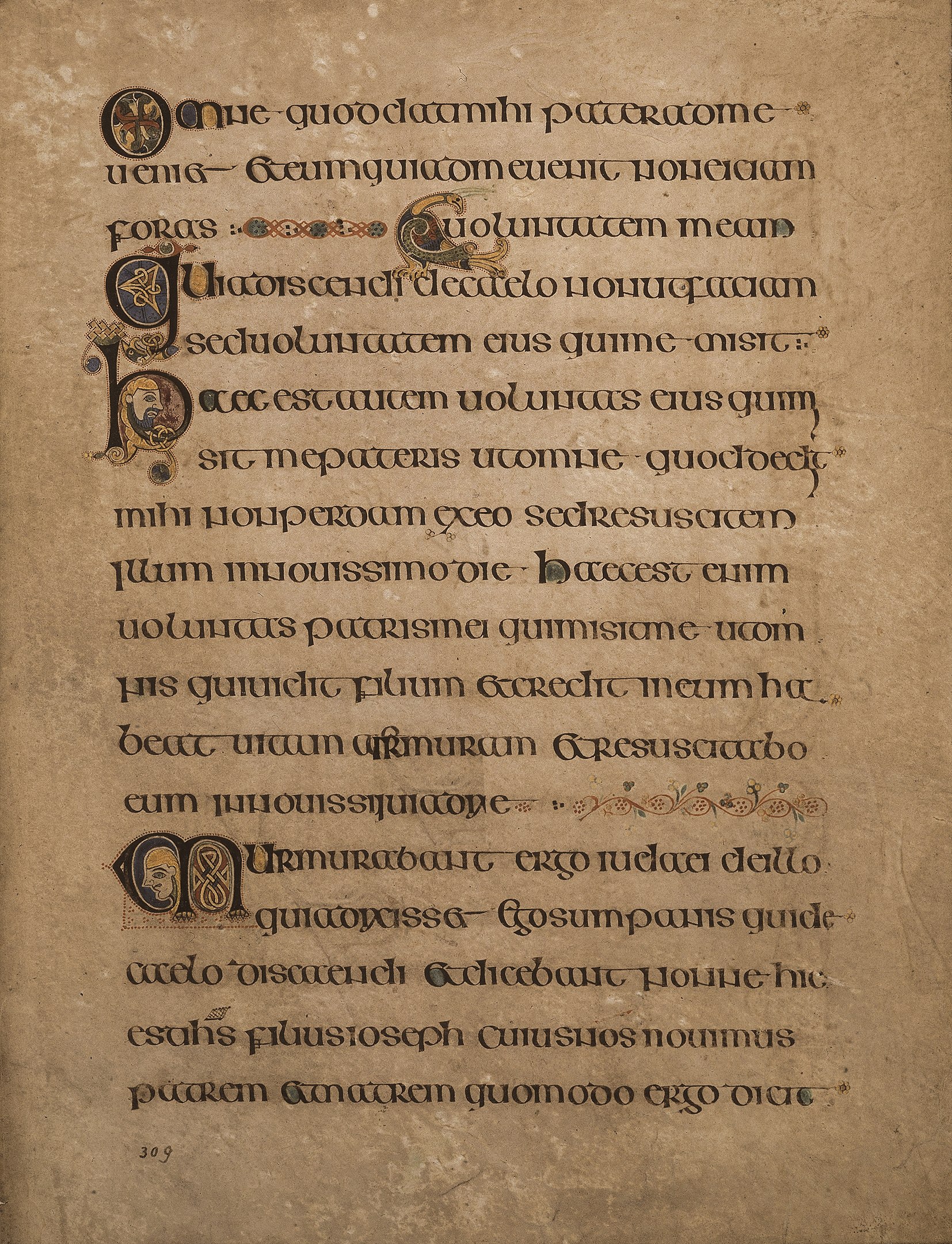

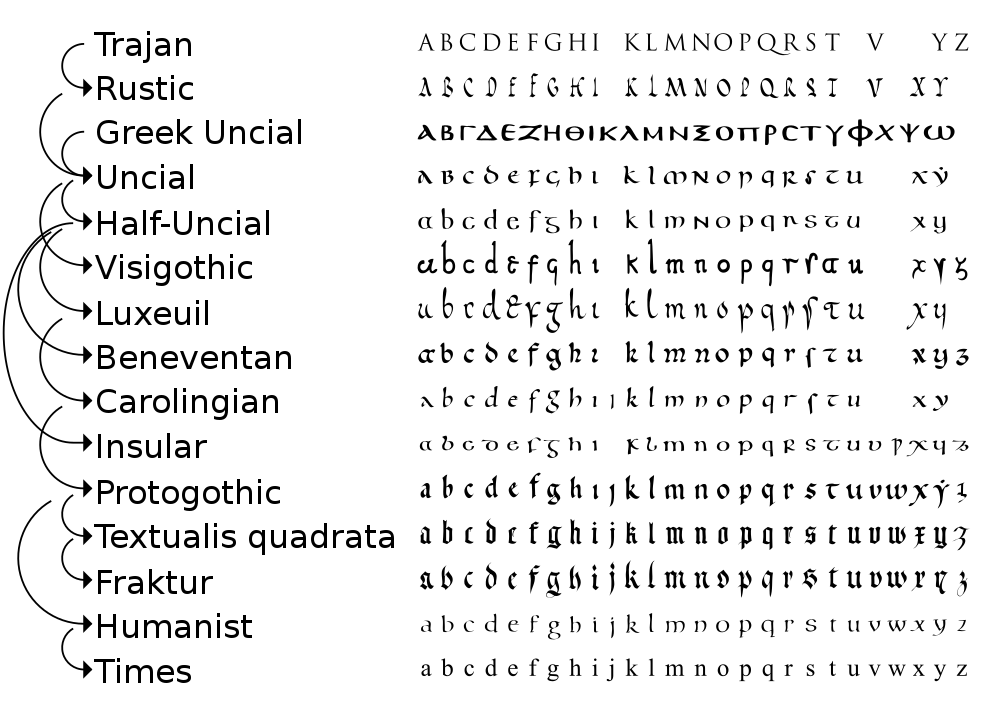

Relationships of various scripts — Evolution of various Roman / Greek uncials Source

Parchment and Paper maker — 1568: Parchment and paper maker. Source

Movable Type

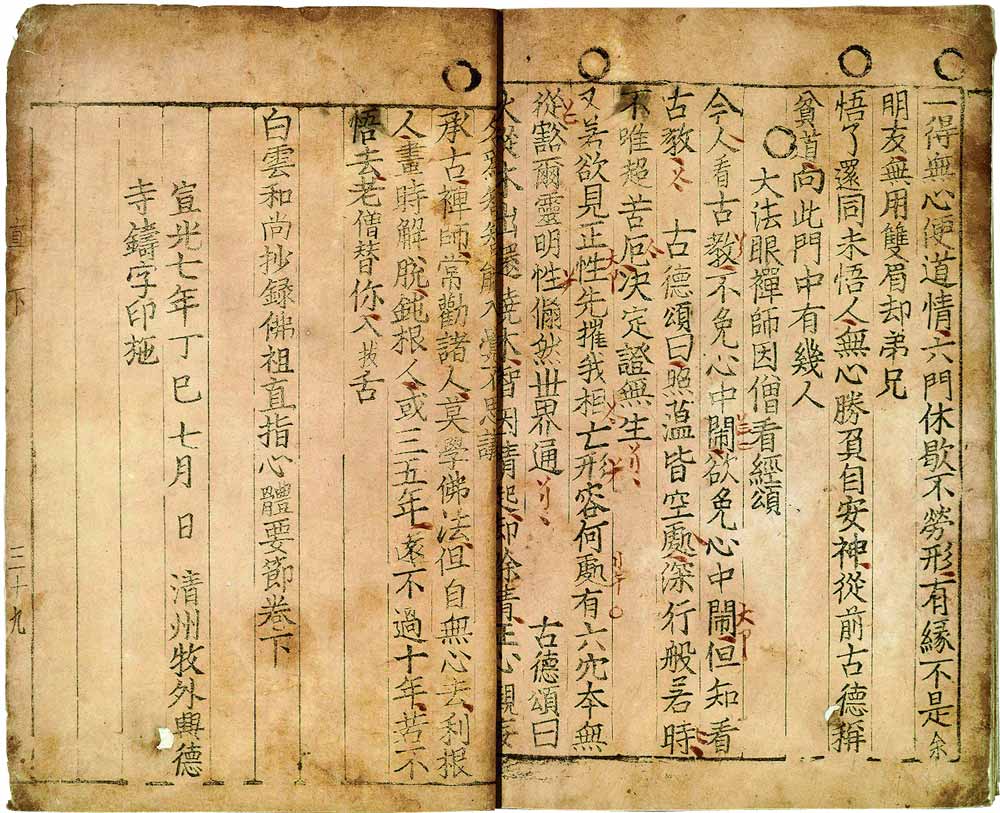

1377: Korean Buddhist document *Jikji*, oldest metal type specimenSource

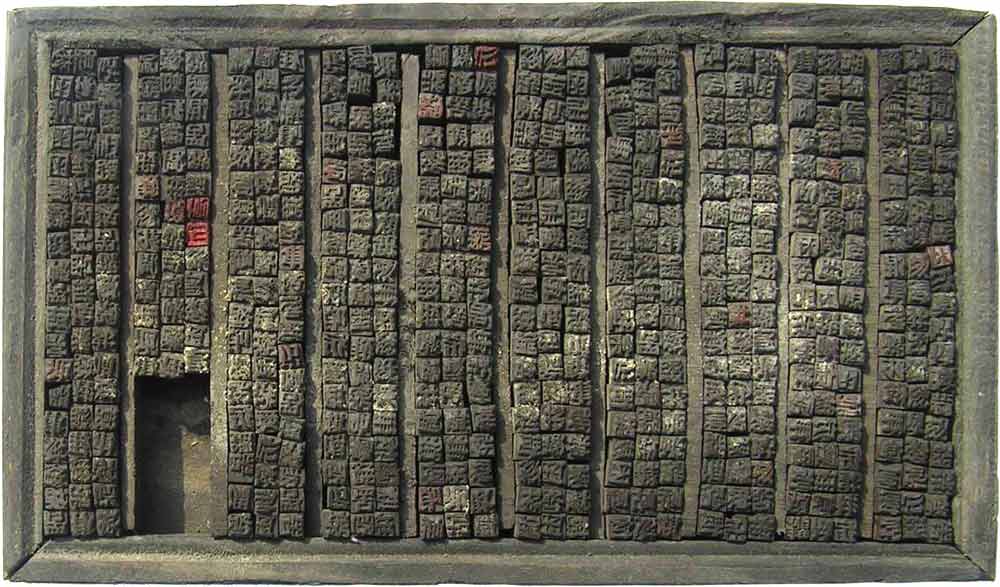

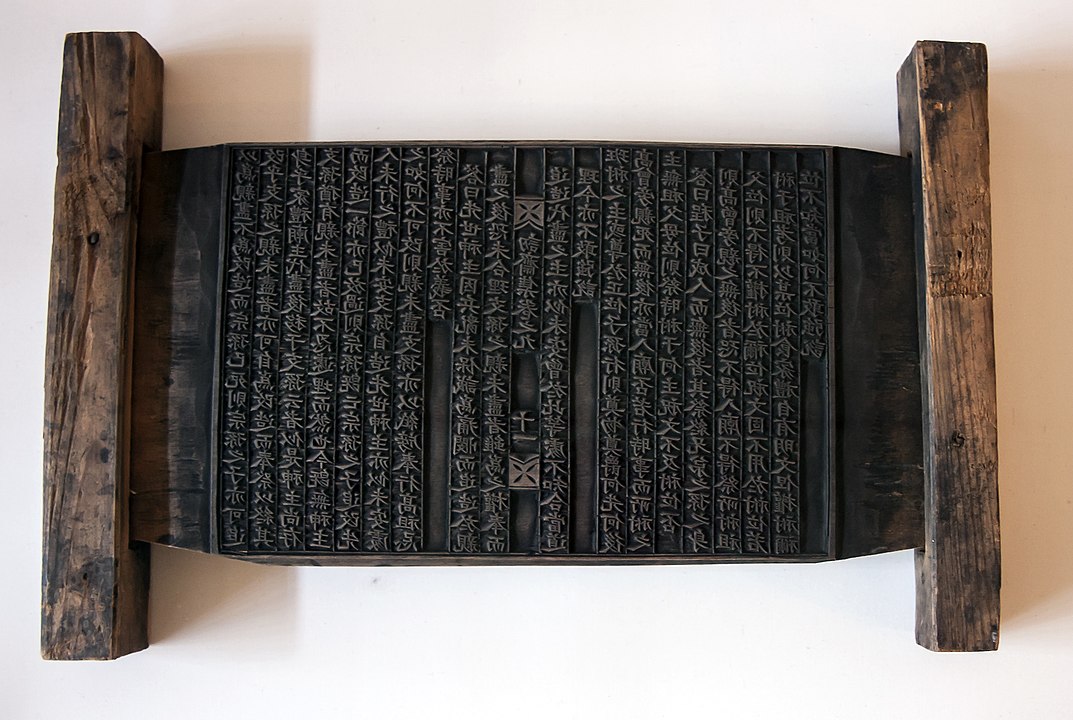

Woodblock printing — Korean printing blockSource

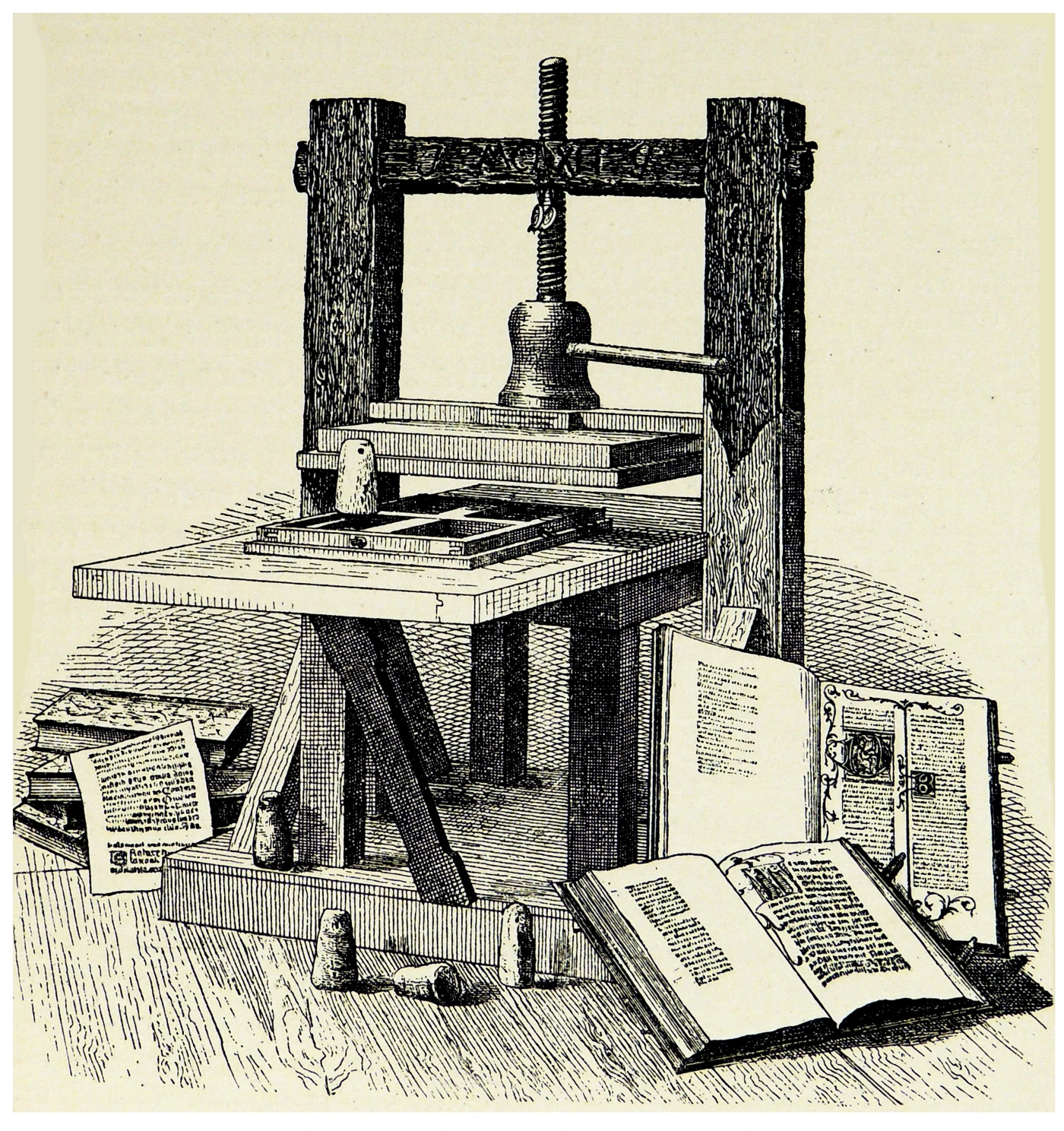

Printing Press — 1436: Gutenberg develops the printing press Source

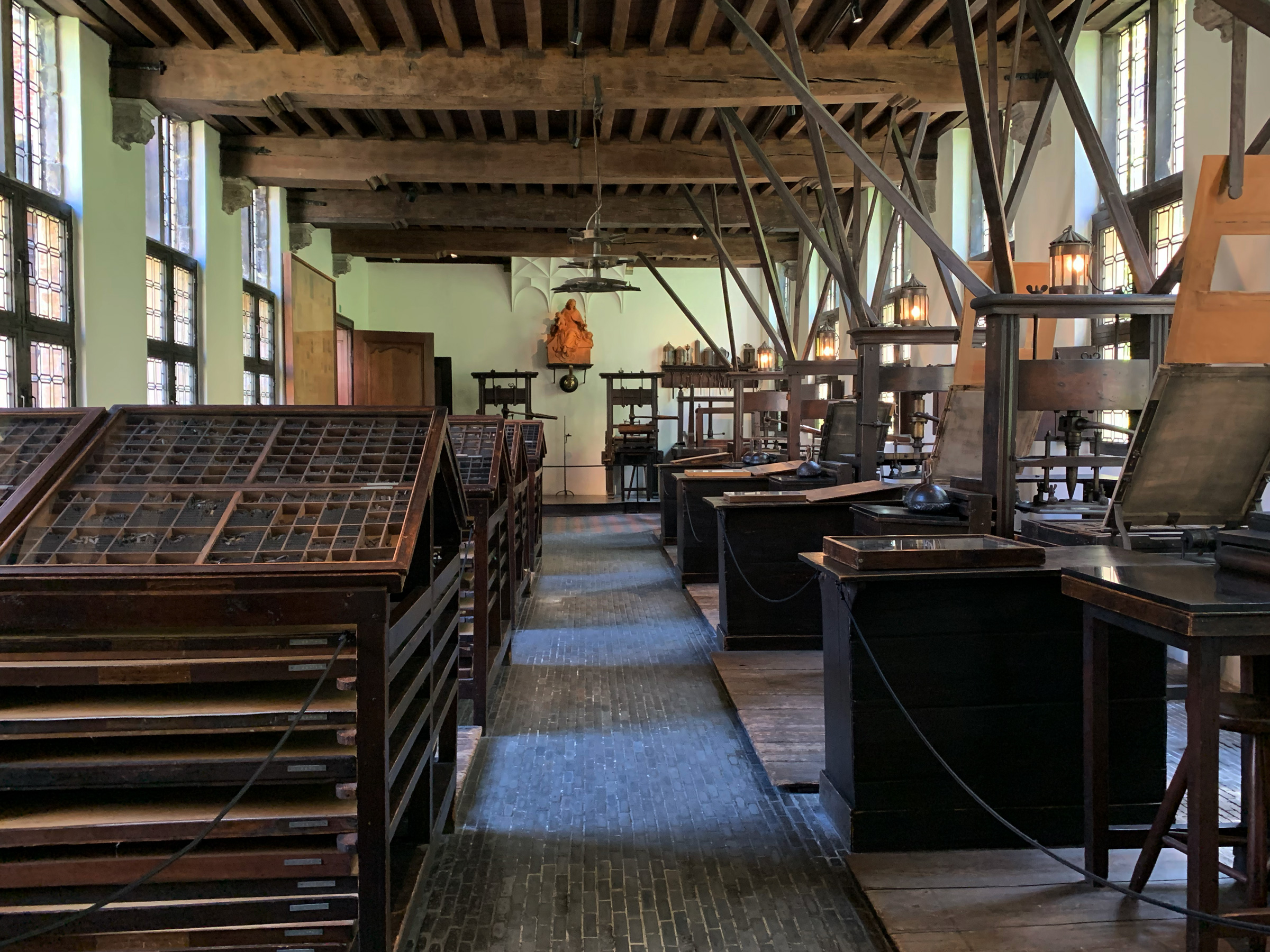

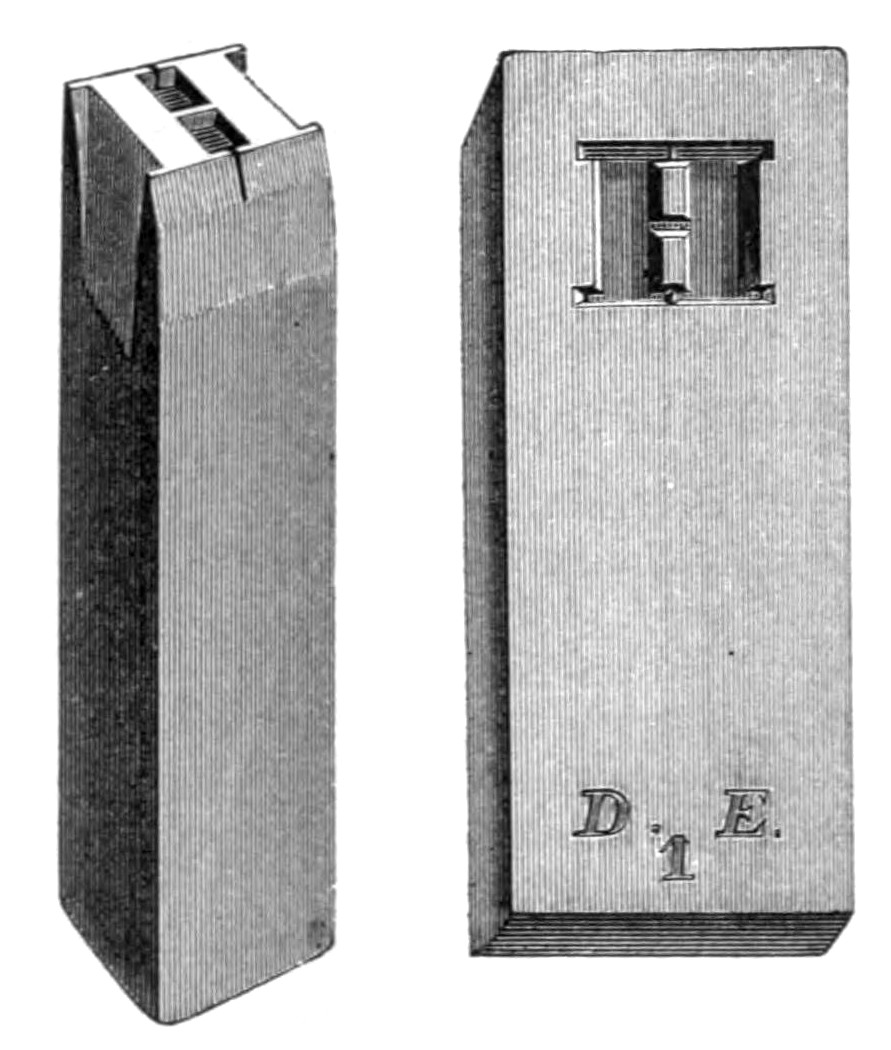

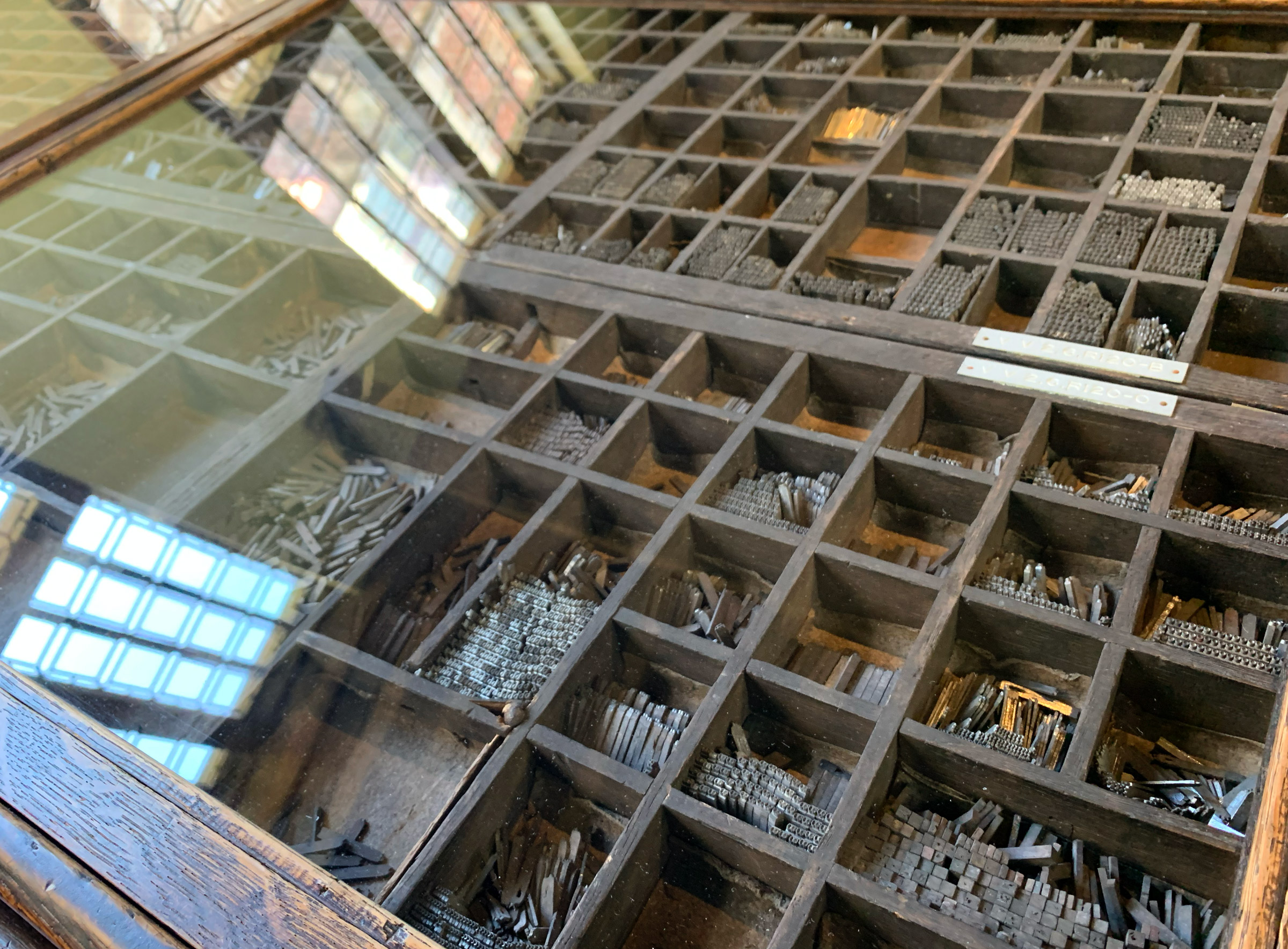

Punch-Matrix System — Type Shop in Plantin Moretus Museum, Antwerp.

The production of metal type Source

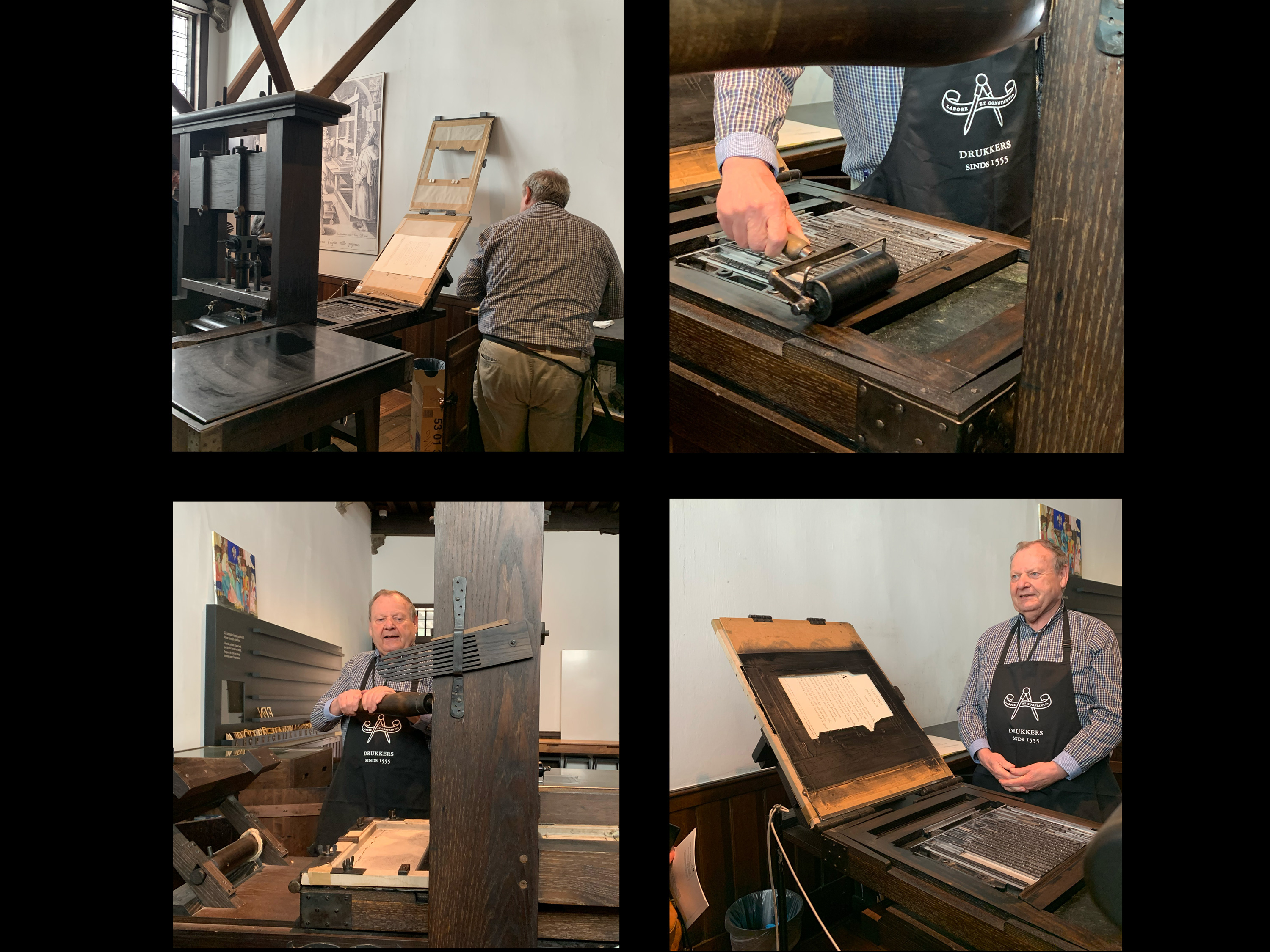

Printing Press demonstration — Press demonstration at Plantin Moretus Museum, Antwerp.

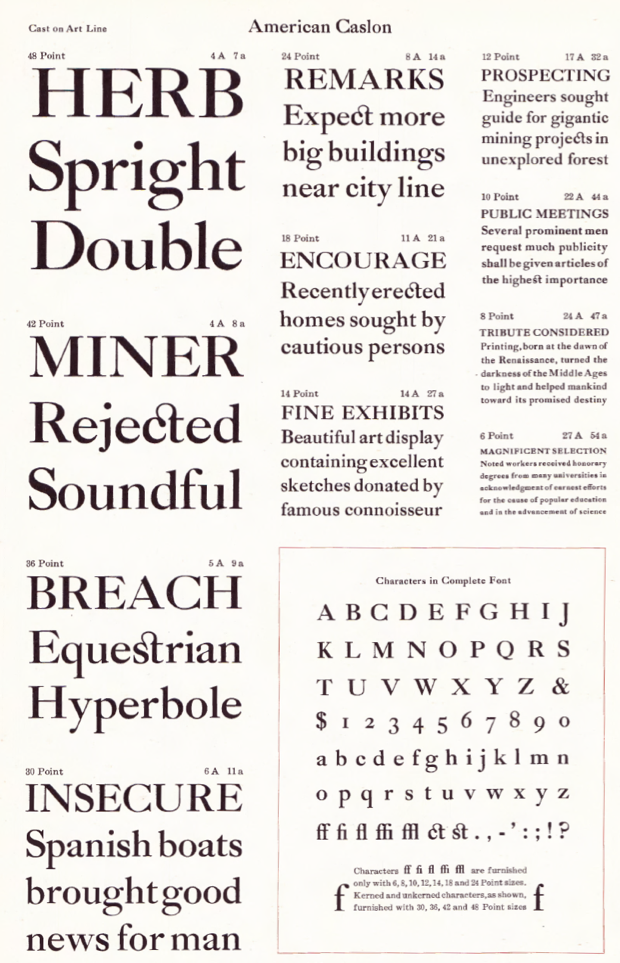

ATF Caslon Specimen 1923 — American Type Foundry Caslon Specimen, 1923 Source

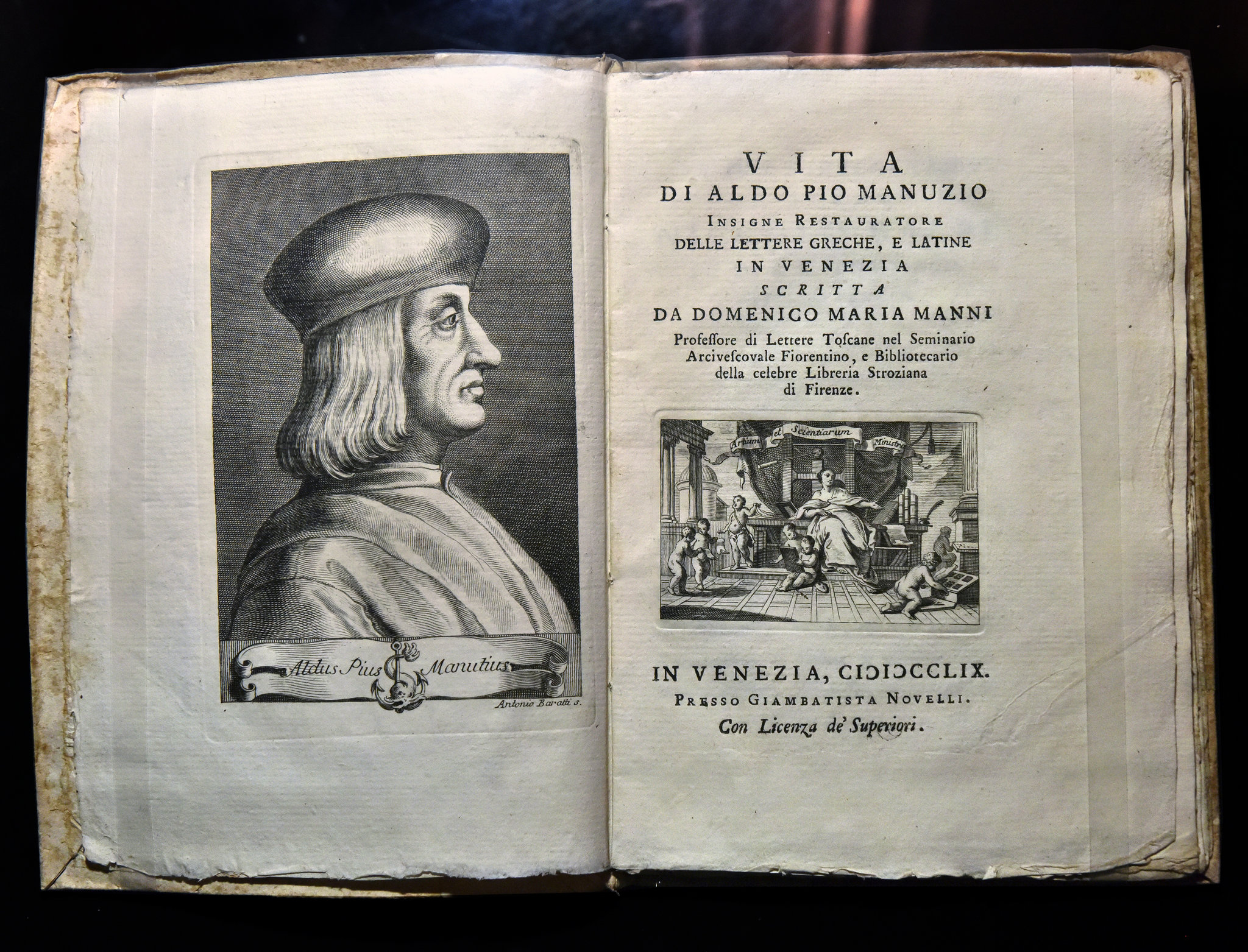

Aldus Manutius (c. 1452-1515) and italic forms Source

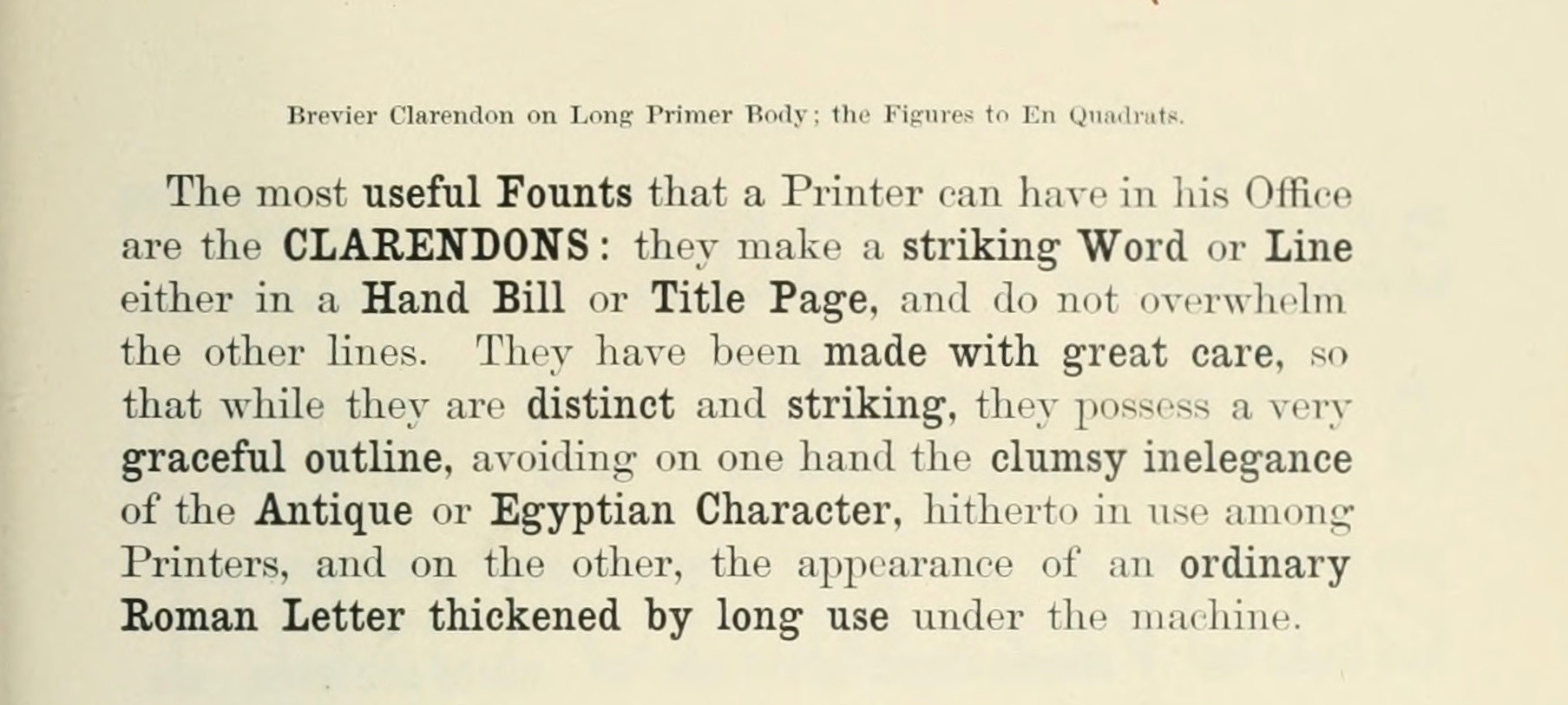

Clarendon — 1874: Different weights are developed to provide emphasis Source

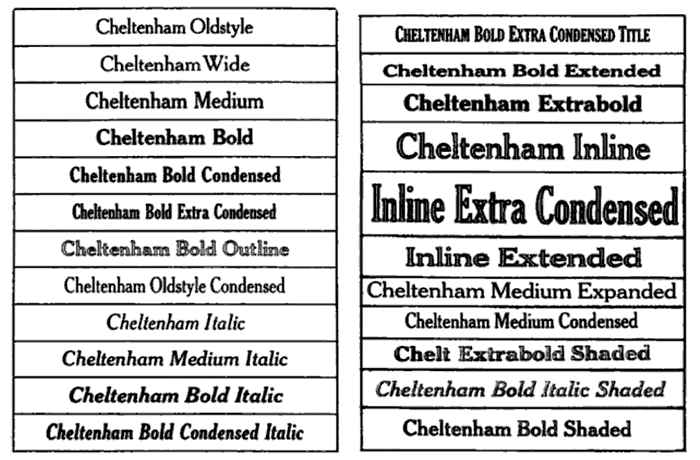

1918: Morris Fuller Benton develops a variety of weights and styles for Cheltenham. It was among the first typefaces to be released as a type ‘family.’Source

Hamilton Wood Type Specimen — 1899 specimen from Hamlton Wood Type Source

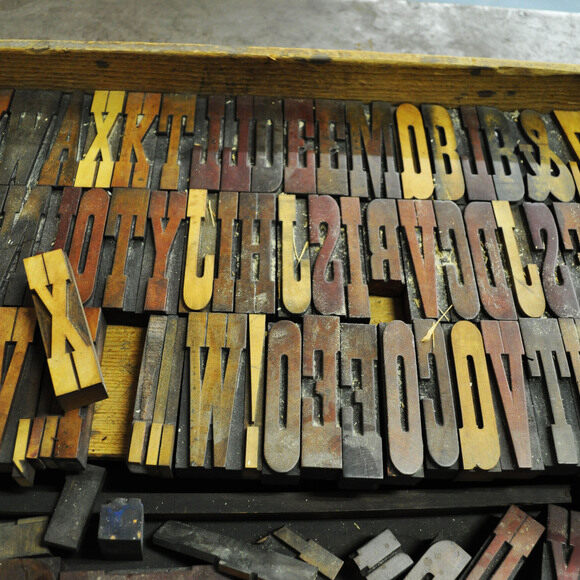

Wooden type allowed much larger sizes to be printed Source

Wood Type Poster — With the impact of Wood type, posters proliferated for entertainment, advertising, political campaignsSource

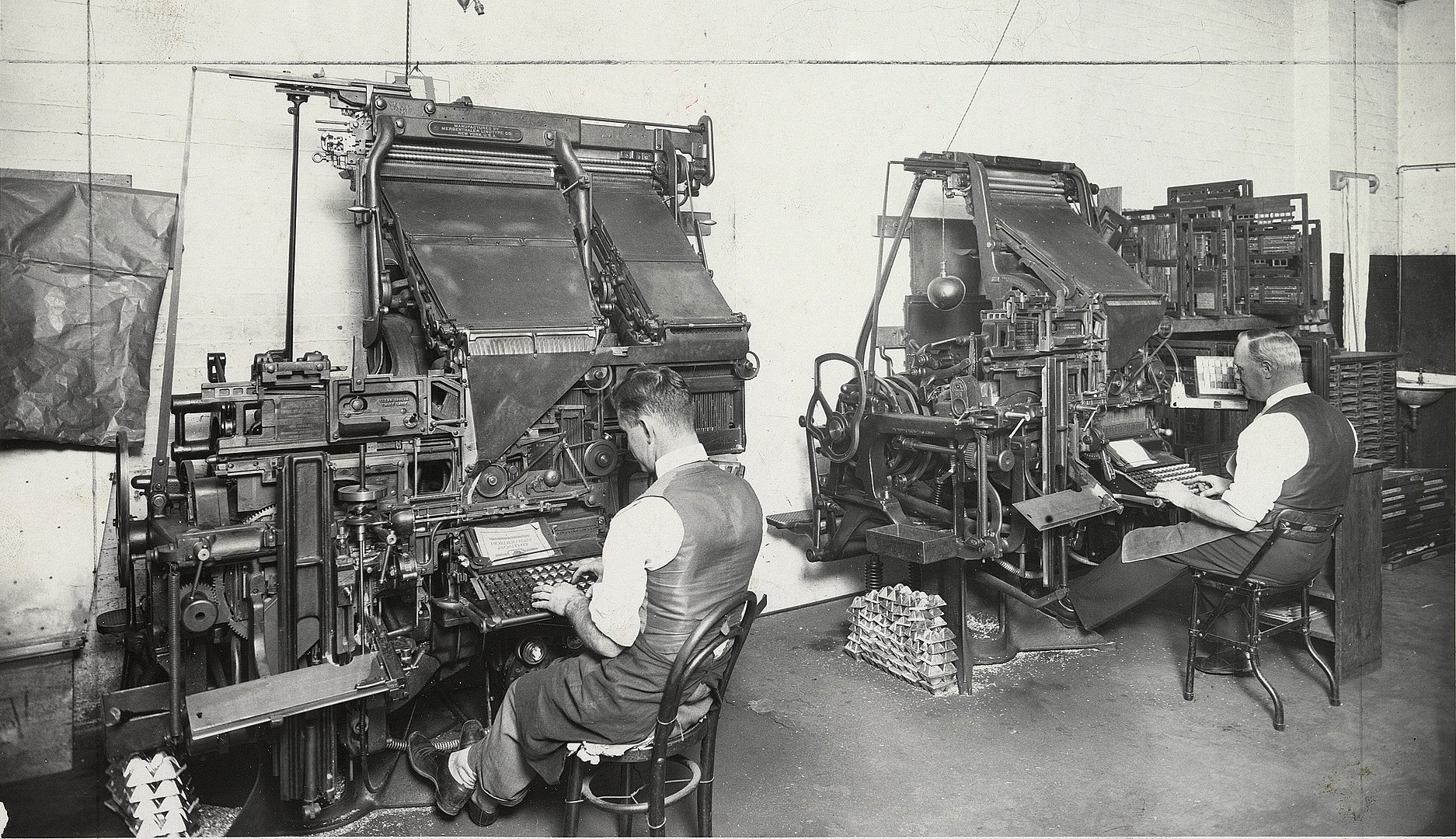

Linotype Machines enabled printing many copies more efficiently, enabling a more rapid pace of journalism Source

‘Farewell, Etaoin Shrdlu’ was a documentary on the end of “hot type.”Source

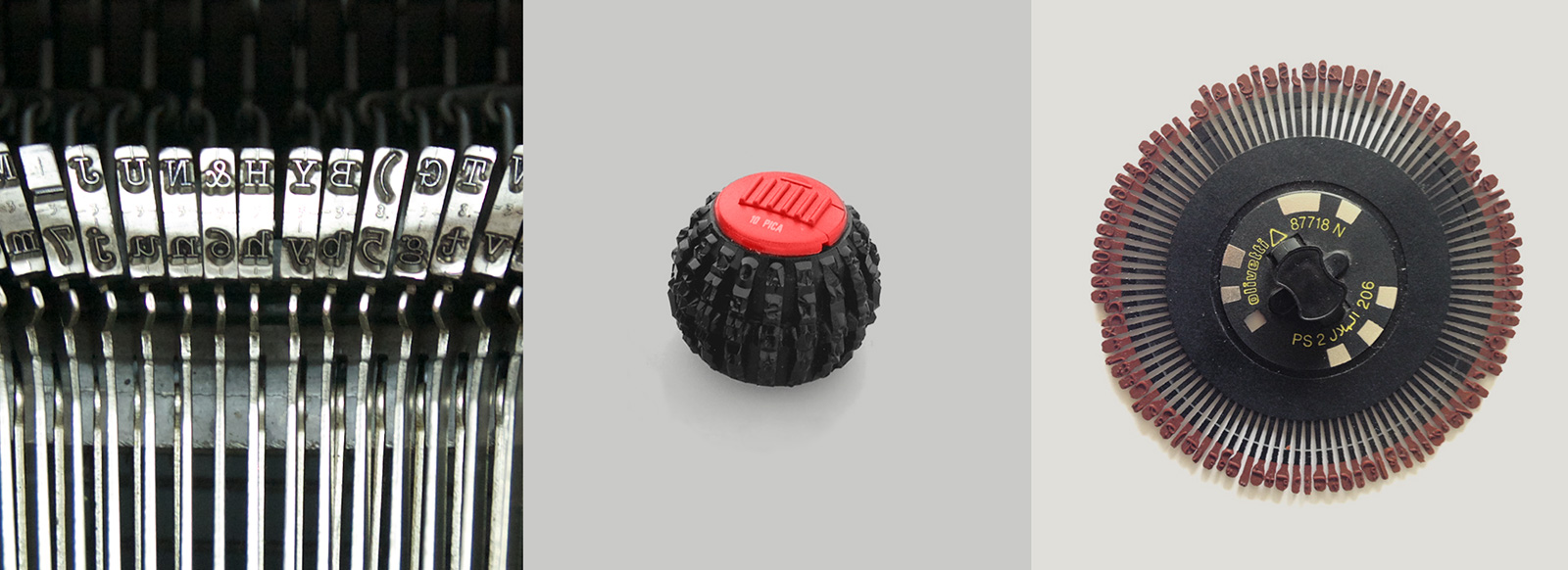

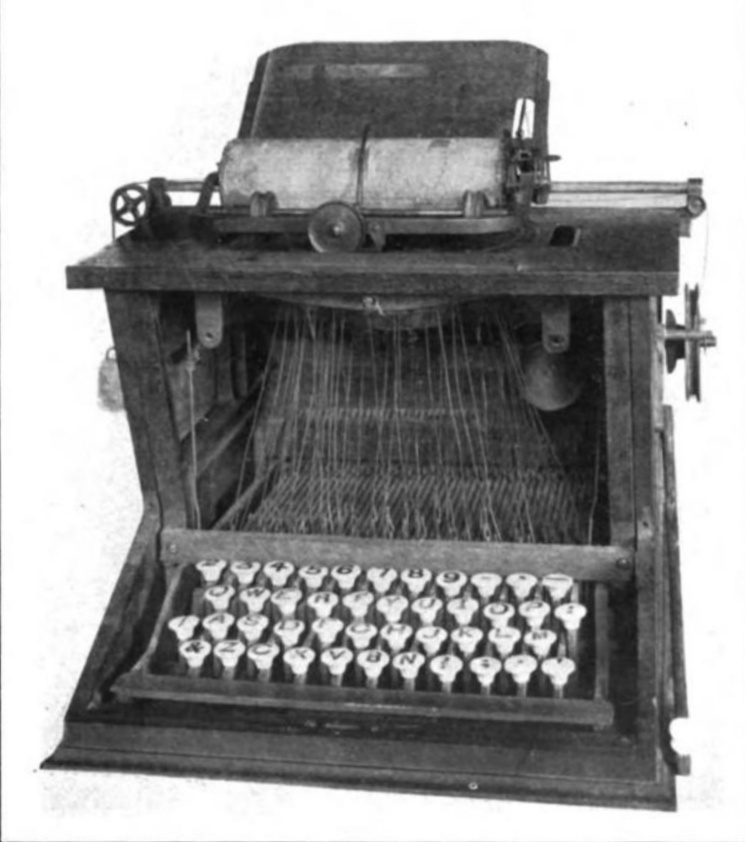

Sholes Typewriter — 1873: Sholes and Glidden typewriter with QWERTY keyboard Source

Digital Type

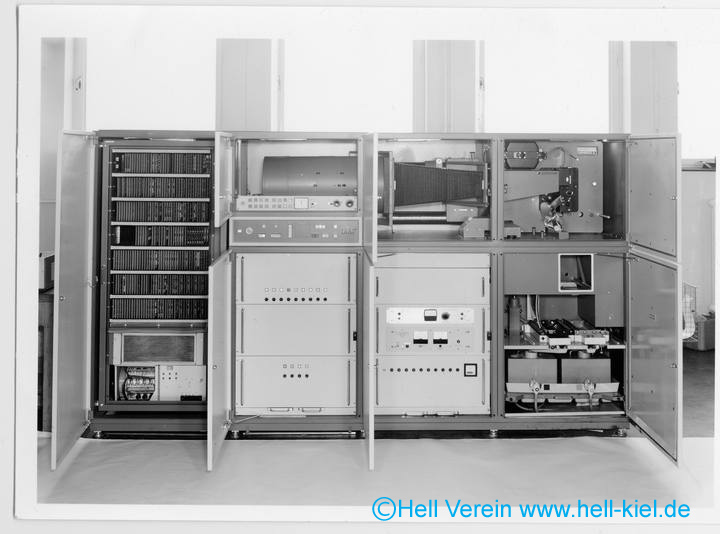

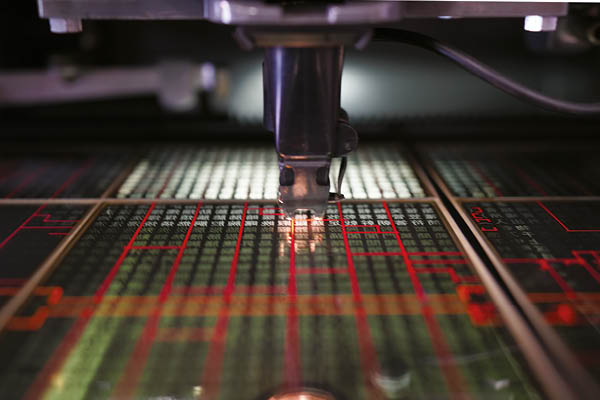

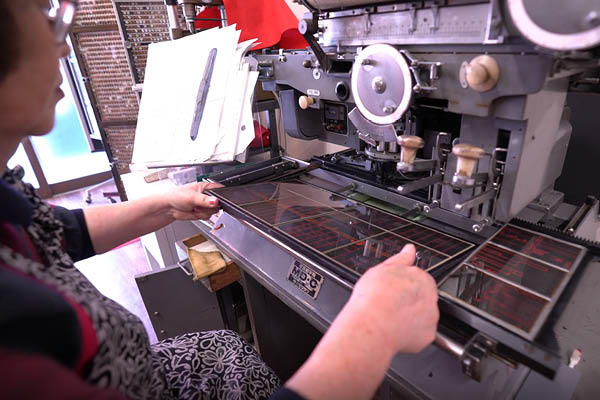

Digiset — Morisawa Phototypesetting Machine from 1960s Source

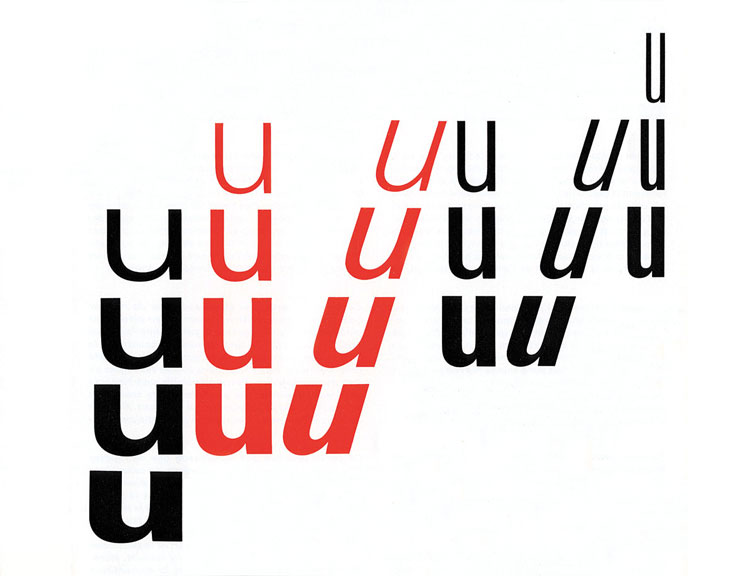

Frutiger’s Univers aimed to take advantage of Phototypsetting technology. Source

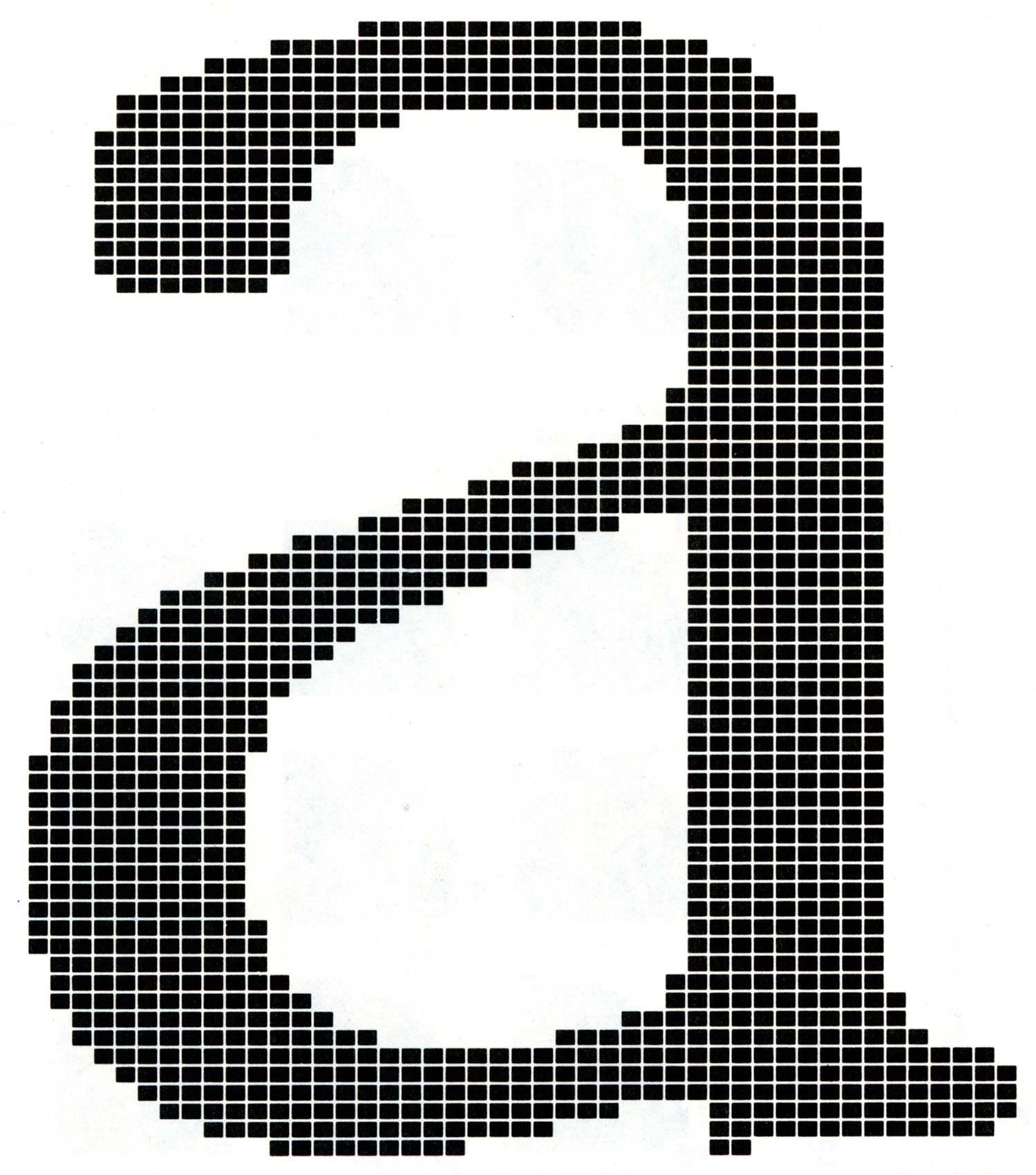

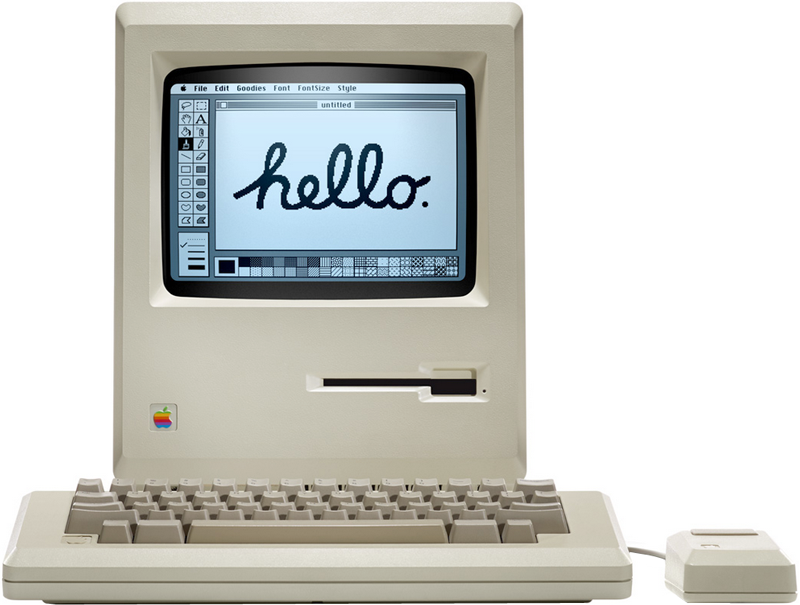

Apple Macintosh — Gerard Unger’s Demos, decomposed of several hundred bitmaps, to be used for typesetting on the Hell Digiset Source

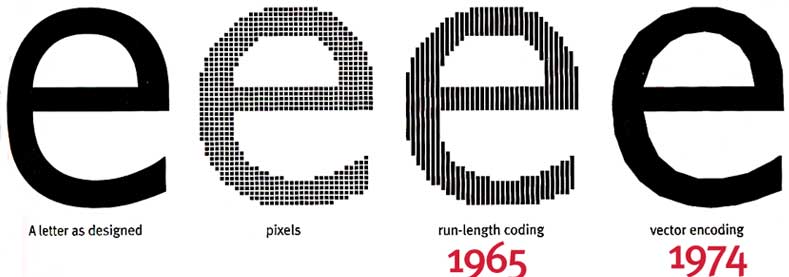

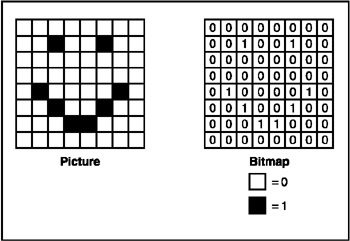

Bitmap — A 8 x 8 bitmap composed of 0s and 1sSource

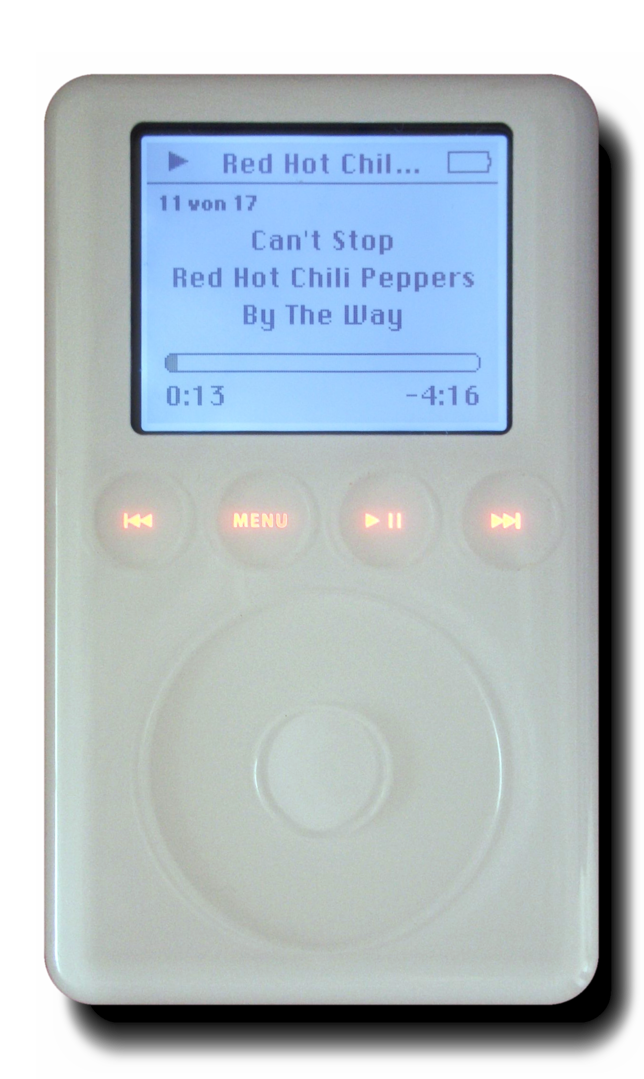

2003: Kare’s Chicago font on third-generation iPod Source

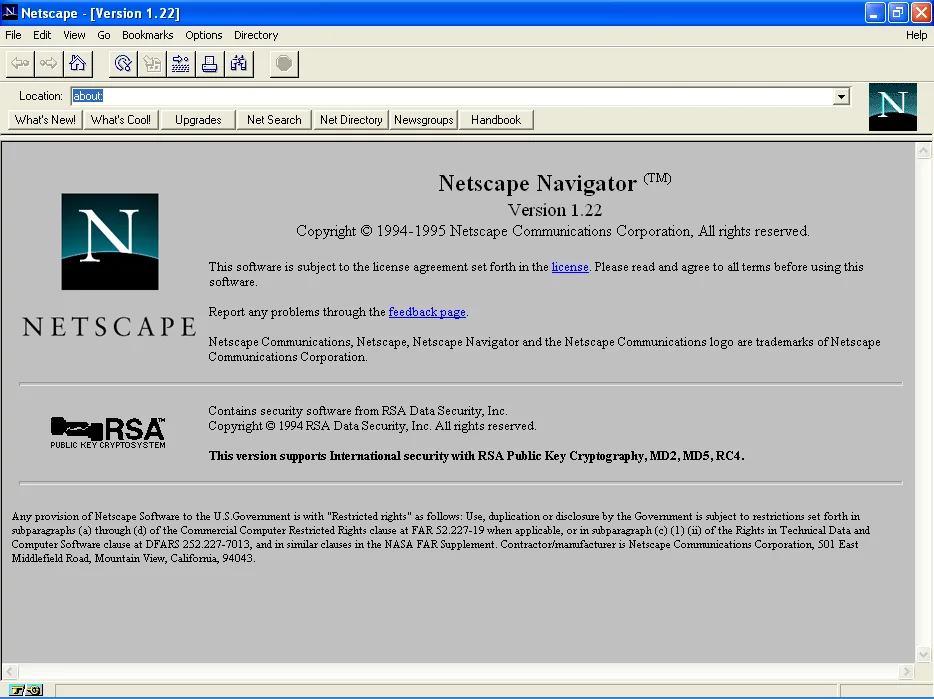

Netscape Navigator Browser, 1995 for Windows XPSource

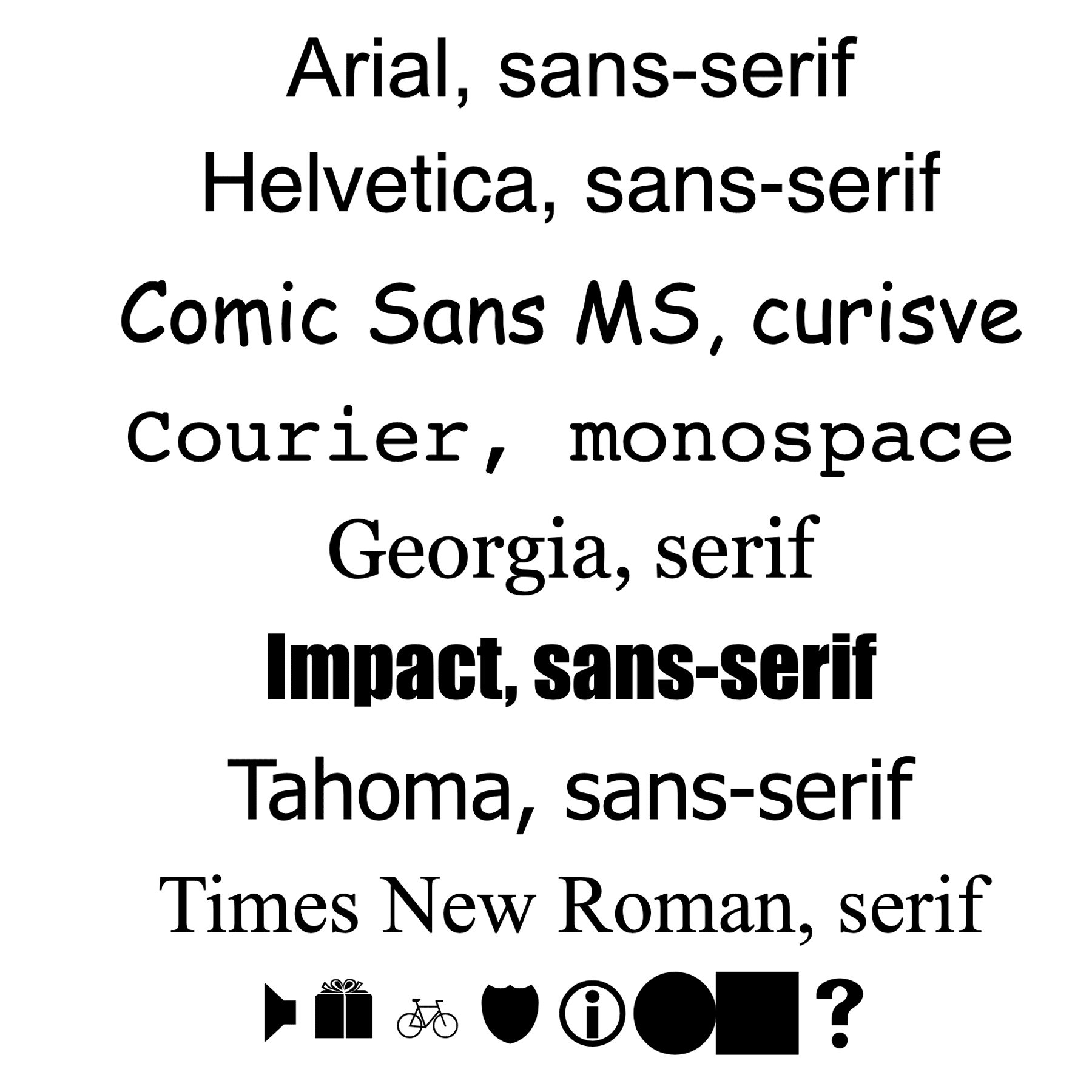

Websafe fonts — A sample of core “Websafe” fonts

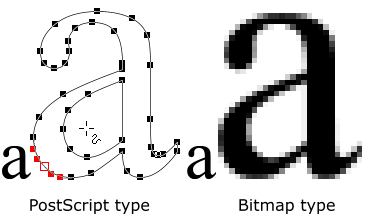

Vector — 1974: Outline fonts are drawings constructed by mathematical formula, allowing any character outline to be scalable to any size. Source

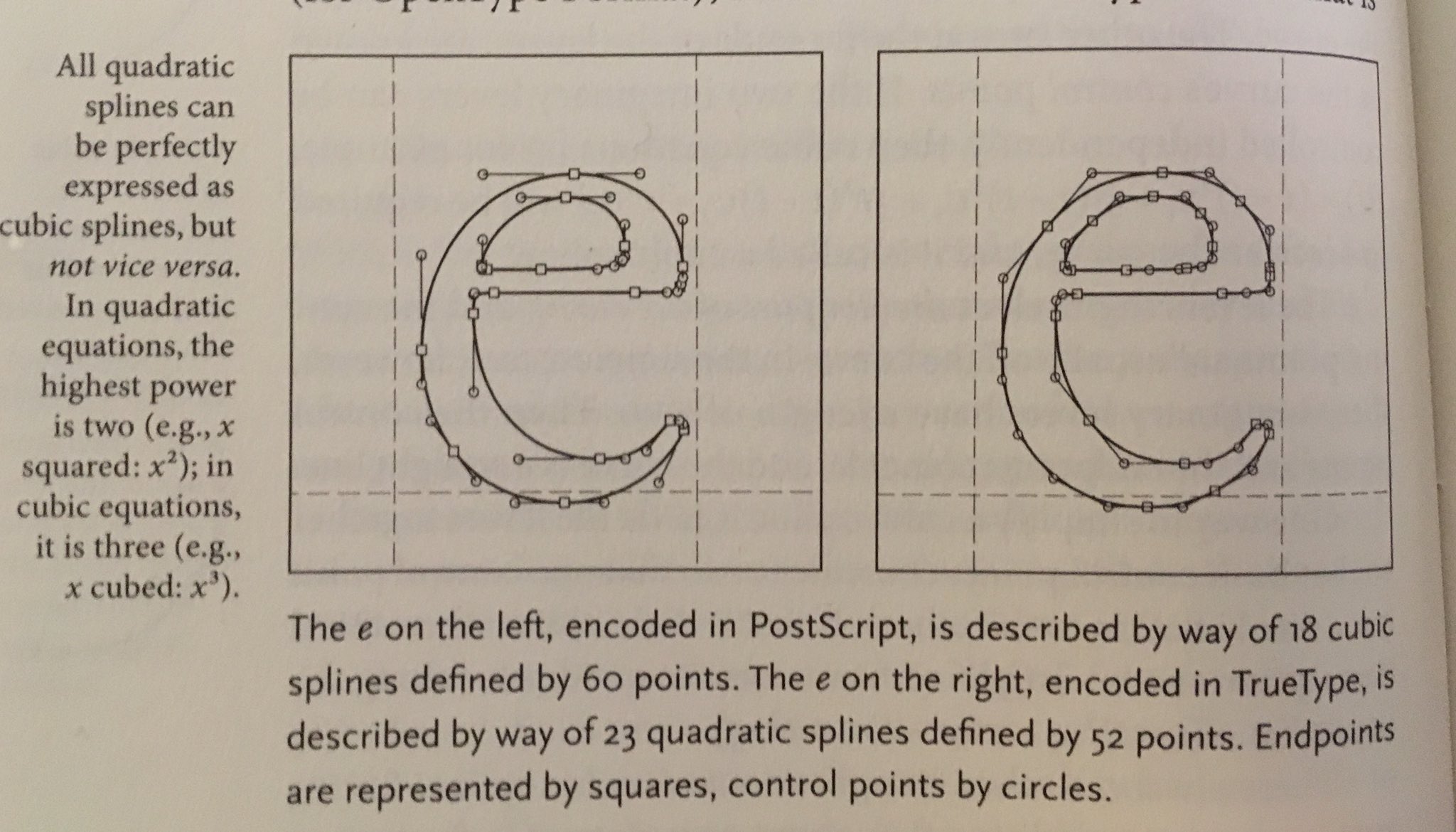

Splines — Apple TrueType splines, late 1980s Source

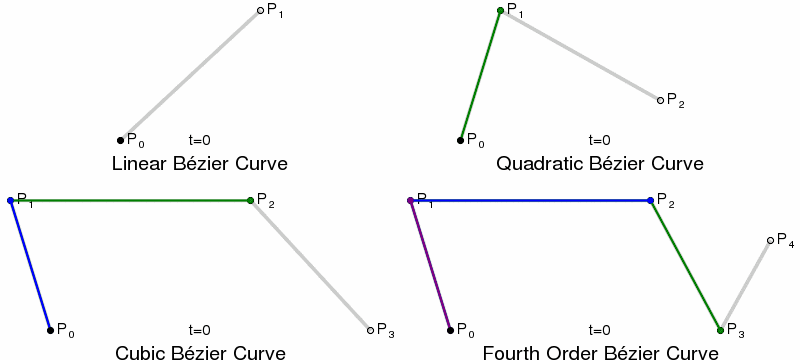

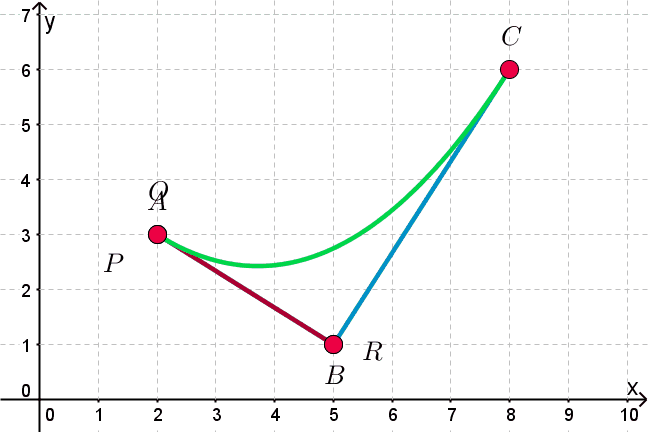

Cubic Bezeir — Cubic Bezier CurvesSource

1991: Adobe Multiple Master, a predecessor to Open Type Variable Fonts Source

OpenType 1.8

Variable Fonts

A variable font is a single font file contains many different variations of a typeface, instead of having a separate font file for every width, weight, or style. This format was developed in collaboration by Adobe, Apple, Google, and Microsoft.

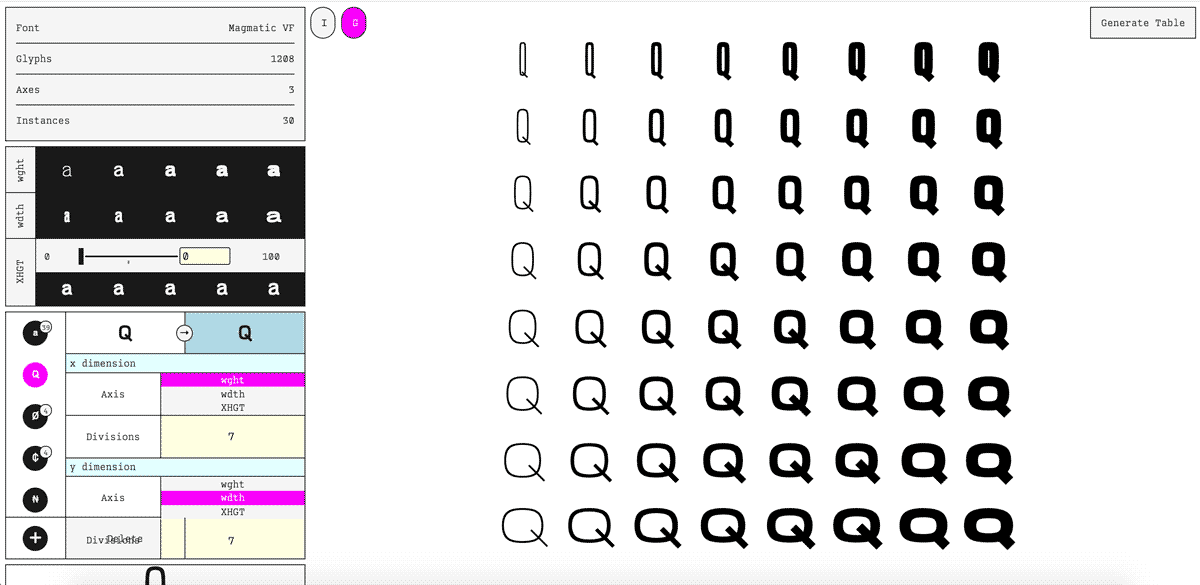

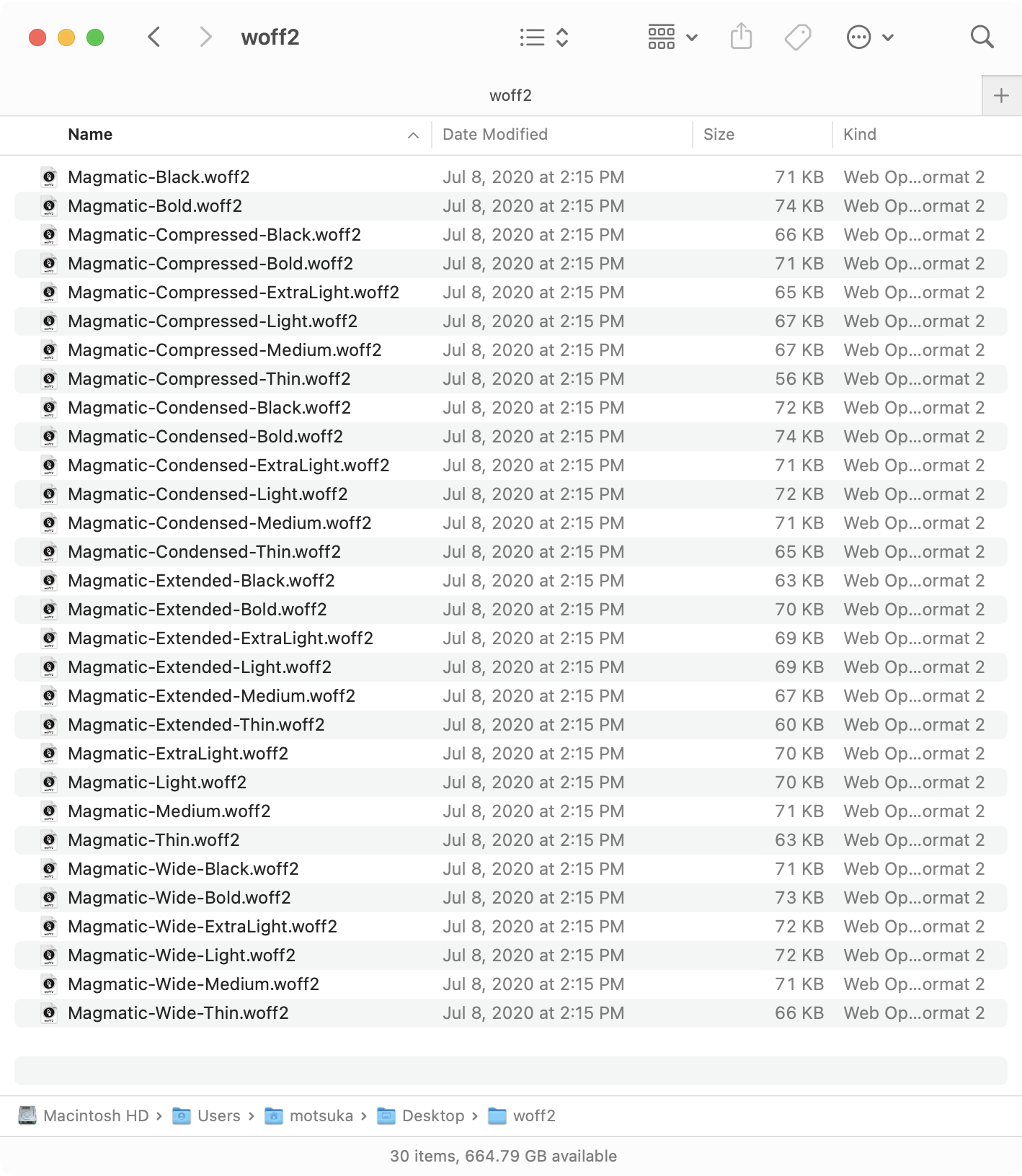

The full family of Magmatic requires 30 files

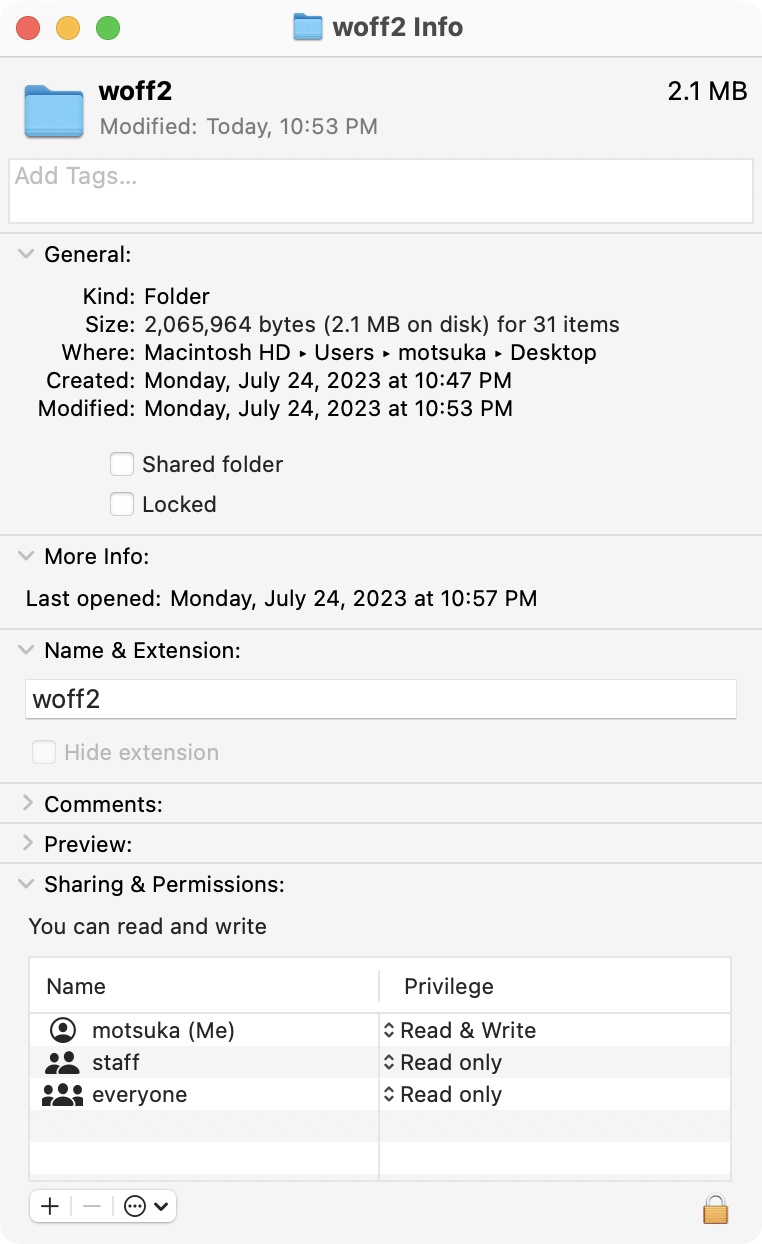

Which would require 30 HTTP requests, and a data load of 2.1MB to be downloaded

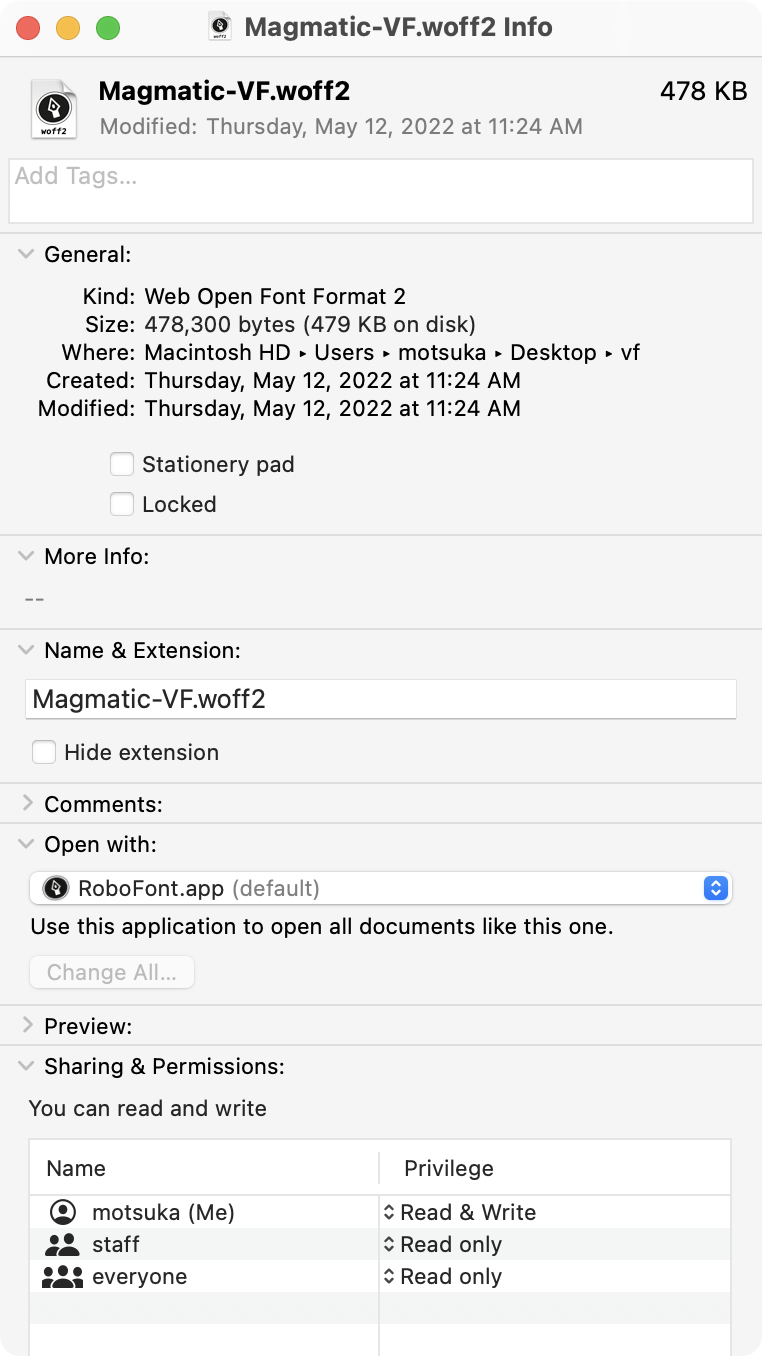

As a variable font, it is a single file request of 478KB (88% lighter)

Digital letterforms are made of mathematical
equations, as functions of time

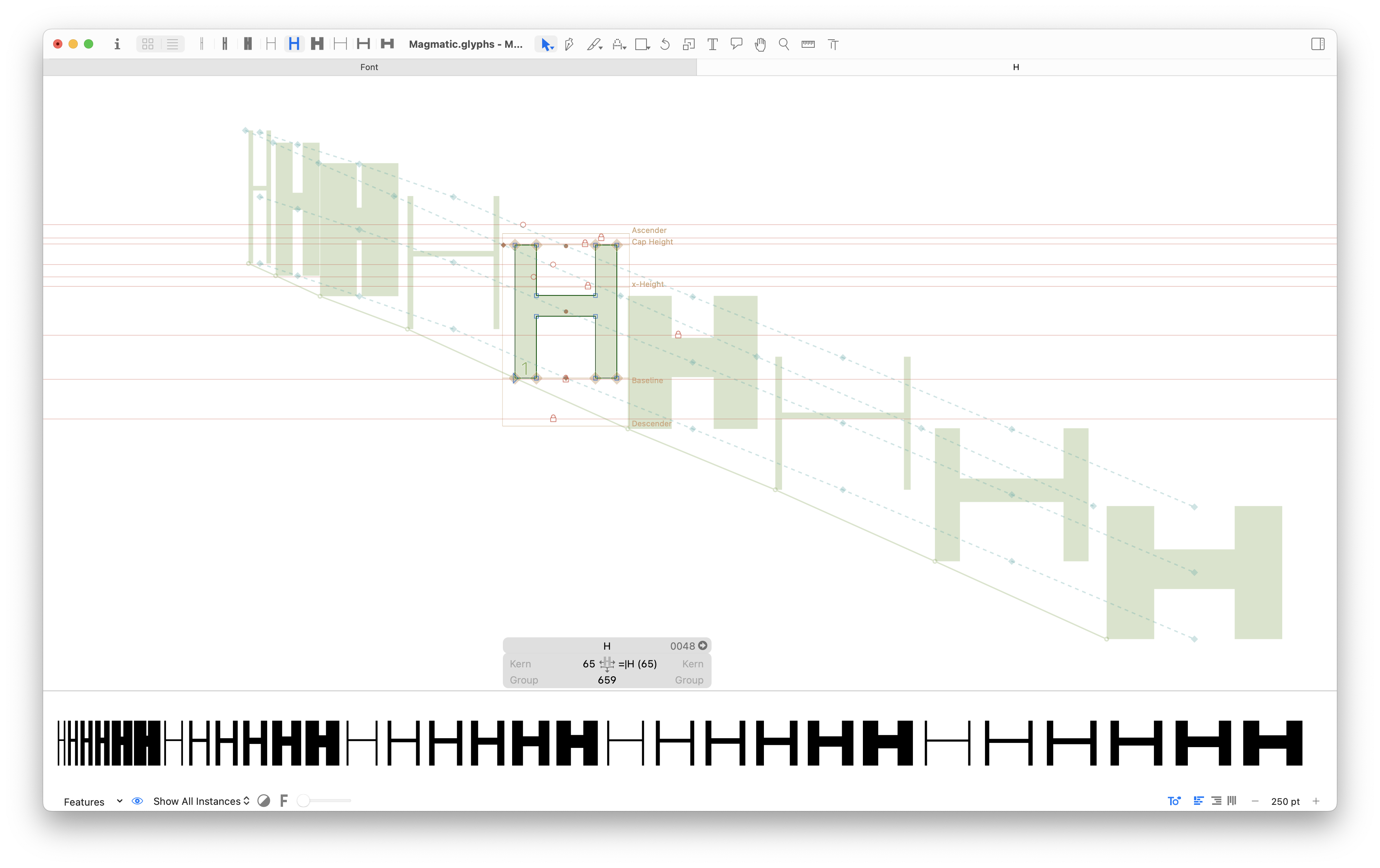

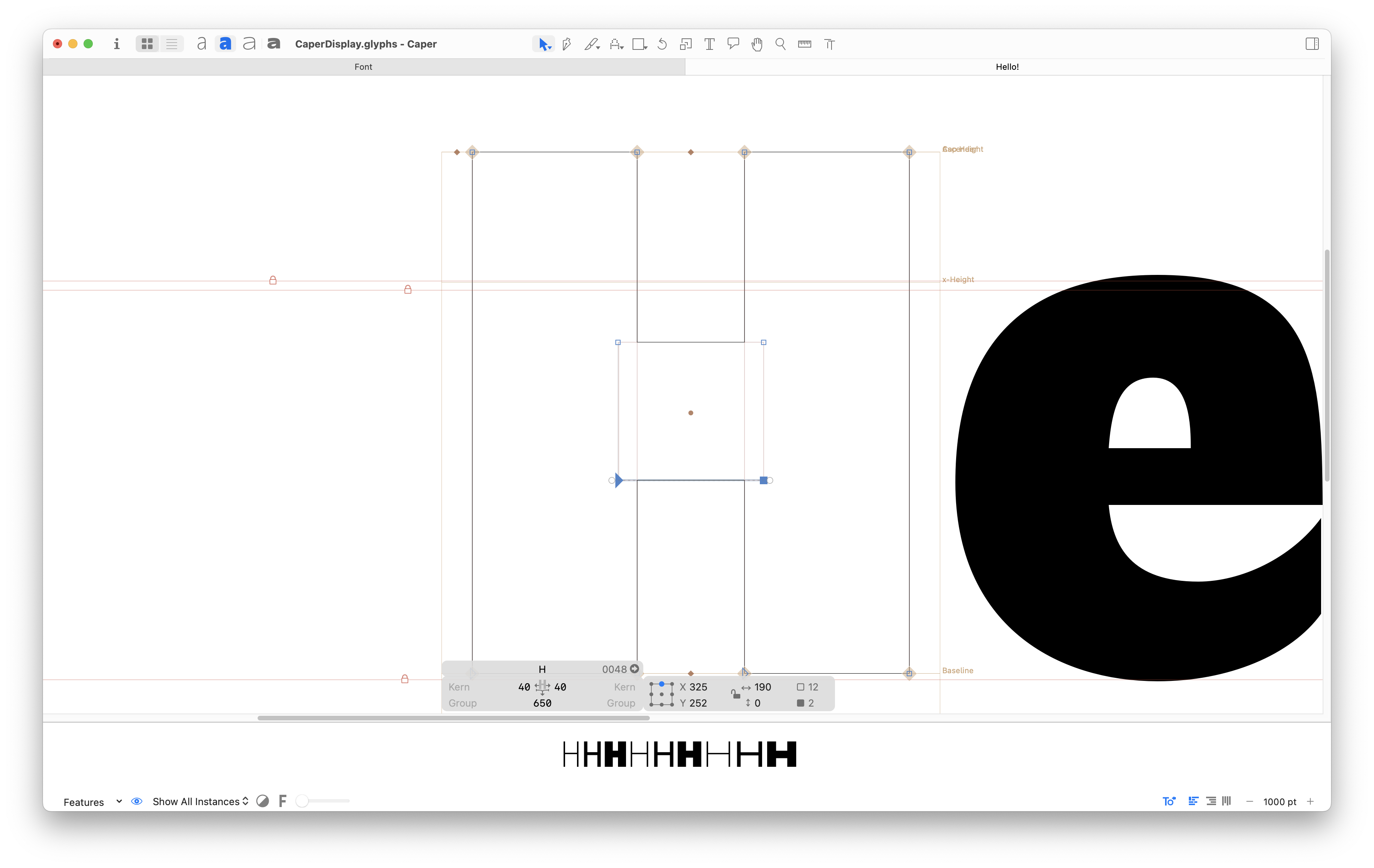

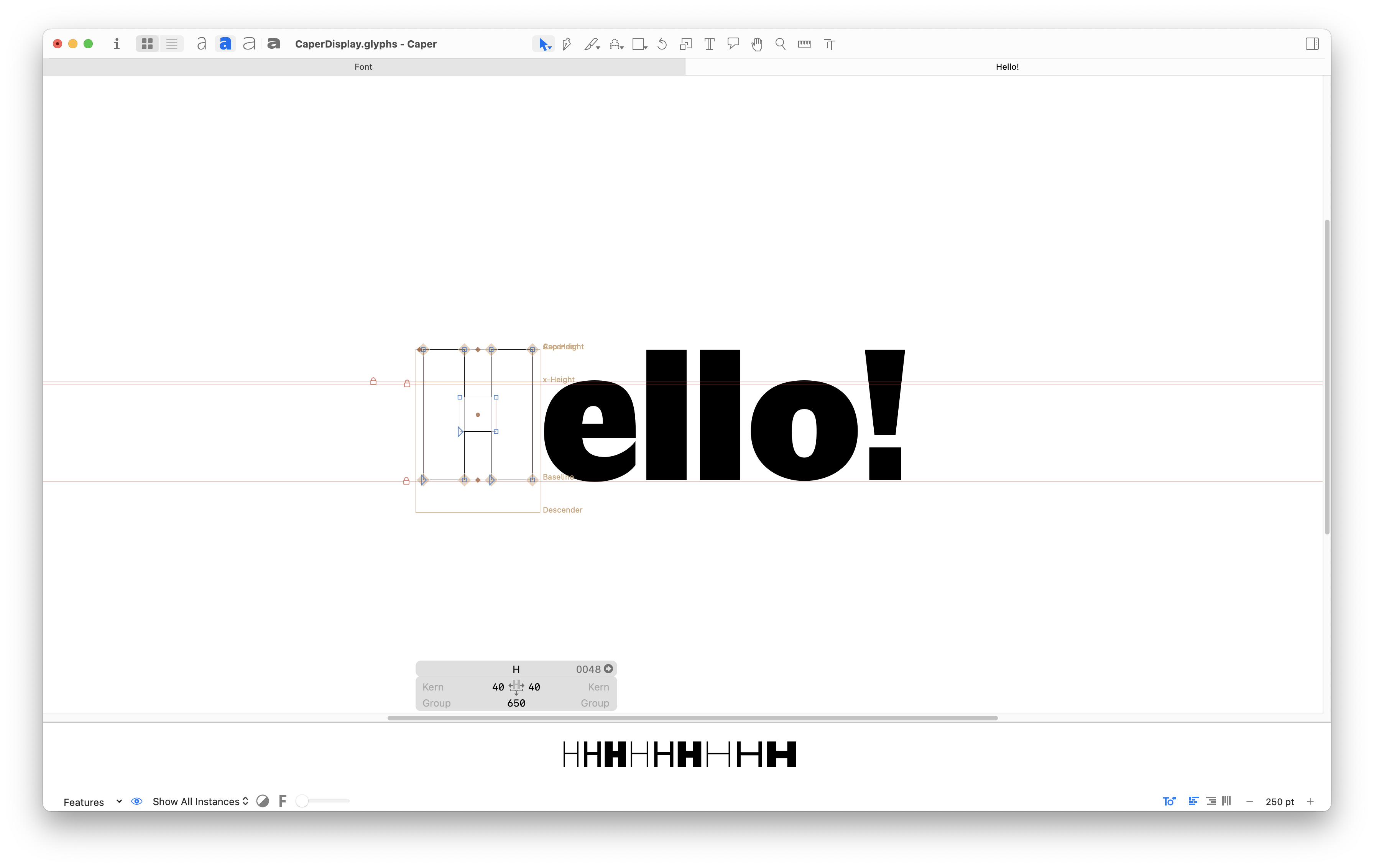

Masters and Instances — Masters vs. Instances Source

H

→

H

←

H

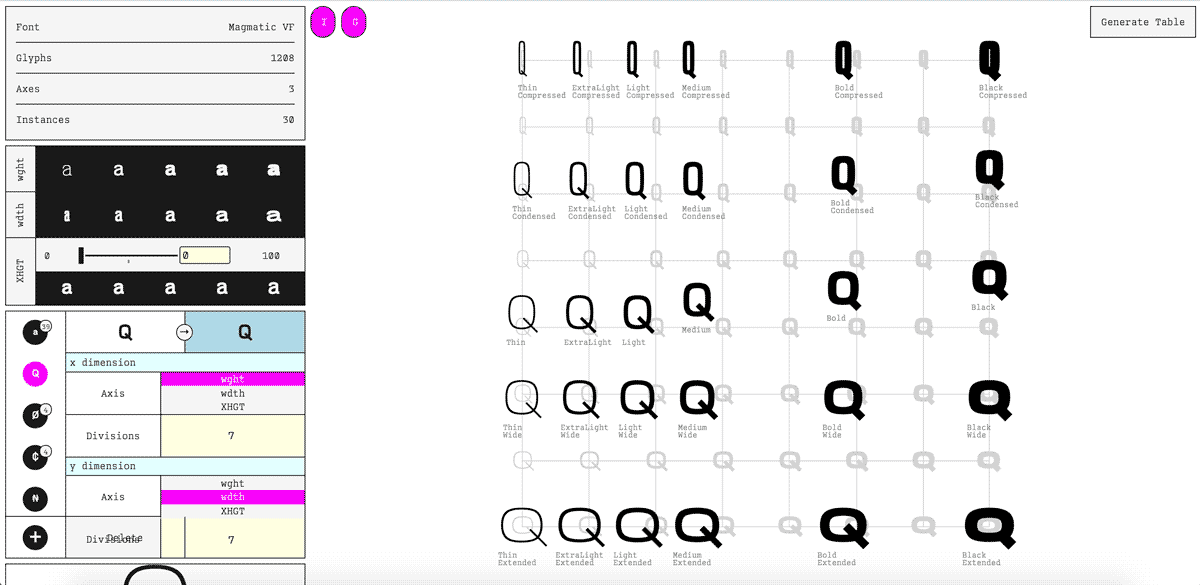

Design Space visualizer — Design space visualizer (Occupant Fonts)

Laurence Penney’s Samsa, Variable Font Inspector

Axis Tag	Description	Valid Range
wght	weight	1—1000
wdth	width	>0, percent of normal width
opsz	optical sizing	>0, point sizes
ital	italicization	0—1
slnt	slant	-90—90

Standard Axes for Open Type 1.8
